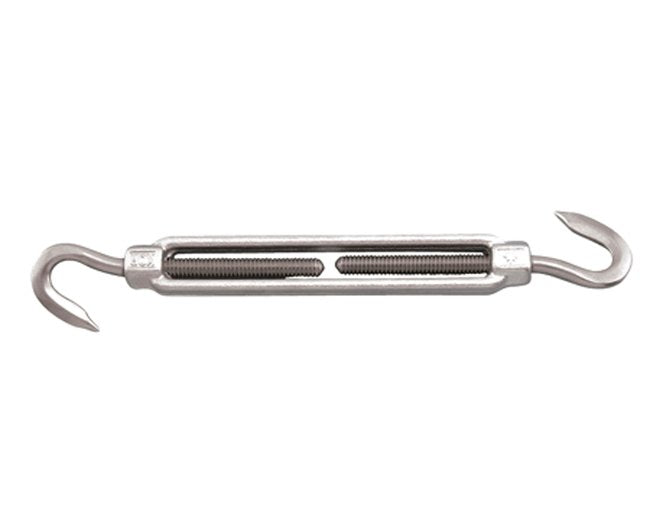

Stainless Steel Forged Hook and Hook Turnbuckle
Stainless Steel Forged Hook and Hook Turnbuckle
SKU:STA-e898fe
Durable stainless steel turnbuckle with high corrosion resistance for marine and industrial applications. Meets ASTM F1145-05 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Forged Hook and Hook Turnbuckle
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Forged Hook and Hook Turnbuckle
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Forged Hook and Hook Turnbuckle offers exceptional corrosion resistance and durability, making it perfect for marine and industrial use. This turnbuckle, crafted from grade 316 stainless steel, complies with ASTM specification F1145-05 (2011) Type 1, Class E for quality assurance. Suncor-exclusive fabrication, with a working load limit of 1,050 lb, ensures reliability for a wide range of projects.
Product Specifications

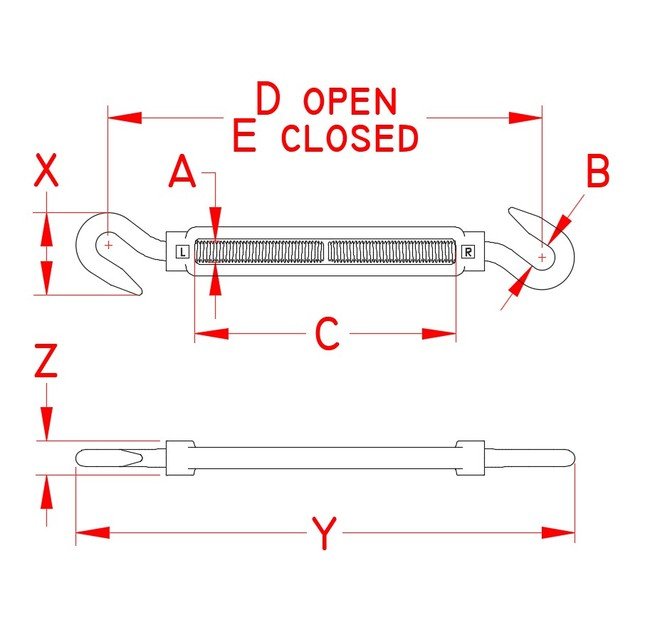

Specifications Dimension A
1/2 in
Specifications Dimension B
0.55 in
Specifications Dimension C
6.00 in
Specifications Dimension D
15.3 in
Specifications Dimension E
10.50 in
Specifications Dimension X
1.9 in
Specifications Dimension Y
12.75 in
Specifications Dimension Z
0.80 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D
Specifications Suncor Exclusive
Yes
Specifications Weight
1.2 lb
Specifications Working Load Limit Wll
1,050 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
