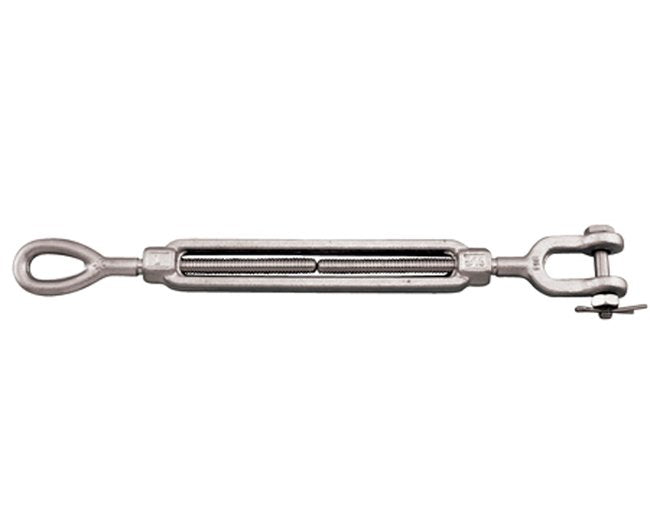

Stainless Steel Forged Jaw and Eye Turnbuckle
Stainless Steel Forged Jaw and Eye Turnbuckle
SKU:STA-035ec2
Durable and corrosion-resistant Stainless Steel Turnbuckle ideal for marine and industrial use, meeting ASTM standards.
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
per
Initiate Order
Stainless Steel Forged Jaw and Eye Turnbuckle
$64.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Forged Jaw and Eye Turnbuckle
$64.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Forged Jaw and Eye Turnbuckle boasts an open-body design and is crafted from grade 316 stainless steel for exceptional corrosion resistance and durability. Available in sizes ranging from 1/4" to 1-1/4", this turnbuckle is ideal for marine and industrial applications. Meeting ASTM specification F1145-05 (2011) Type 1, Class H standards, it ensures superior quality and performance in various projects.
Product Specifications

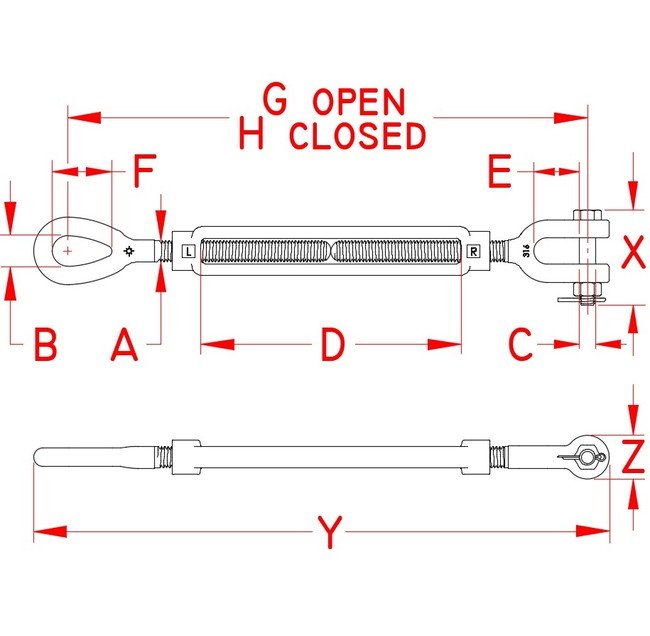

Specifications Dimension A
3/4 in
Specifications Dimension B
1.00 in
Specifications Dimension C
0.63 in
Specifications Dimension D
6.00 in
Specifications Dimension E
1.56 in
Specifications Dimension F
2.02 in
Specifications Dimension G
21.00 in
Specifications Dimension H
15.63 in
Specifications Dimension X
3.38 in
Specifications Dimension Y
17.50 in
Specifications Dimension Z
1.60 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
4.58 lb
Specifications Working Load Limit Wll
5,200 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
