Stainless Steel Forged Jaw and Jaw Turnbuckle - ASTM F1145-05 Compliant

Name: Stainless Steel Forged Jaw and Jaw Turnbuckle - ASTM F1145-05 Compliant
Brand: Suncor Stainless, Inc.
SKU: STA-9ecaaa
Price: 99.99 USD
Availability: OutOfStock

SKU:STA-9ecaaa

Grade 316 stainless steel turnbuckle meeting ASTM F1145-05 standards for marine and industrial use.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

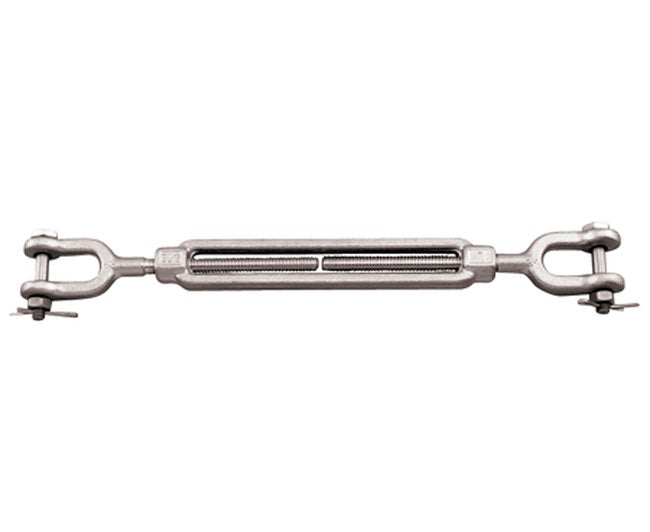

Upgrade your marine and industrial projects with the Forged Jaw and Jaw Turnbuckle. Crafted from grade 316 stainless steel, this turnbuckle boasts superior corrosion resistance and durability. Available in various sizes to suit different applications, it meets ASTM F1145-05 (2011) Type 1, Class G standards. With a Working Load Limit of 17,000 lb and precision engineering, this turnbuckle ensures reliability and safety in demanding environments.

Product Specifications

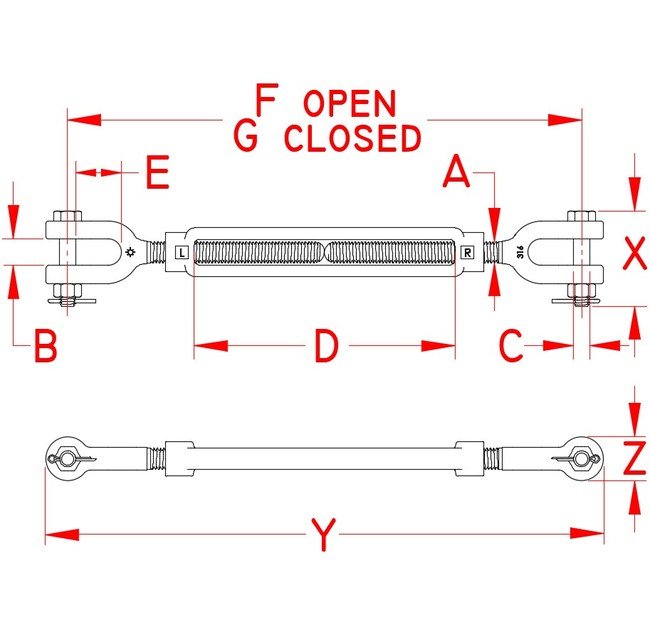

Specifications Dimension A

1-1/2 in

Specifications Dimension B

2.19 in

Specifications Dimension C

1.36 in

Specifications Dimension D

12.00 in

Specifications Dimension E

2.86 in

Specifications Dimension F

41.50 in

Specifications Dimension G

28.95 in

Specifications Dimension X

5.25 in

Specifications Dimension Y

32.00 in

Specifications Dimension Z

3.06 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655

Specifications Suncor Exclusive

Yes

Specifications Weight

34 lb

Specifications Working Load Limit Wll

17,000 lb

CAGE

1CXX6

NAICS

332510

PSC

4030
