Stainless Steel Forged Stub Turnbuckle

Name: Stainless Steel Forged Stub Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-b84fff
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-b84fff

Premium Stainless Steel Turnbuckle for marine and industrial use. Conforms to ASTM standards. Durable and corrosion-resistant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

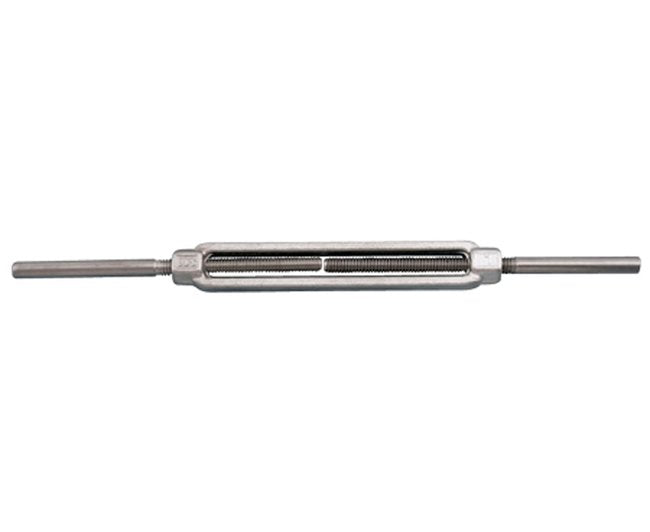

The Stainless Steel Forged Stub Turnbuckle features an open body design, crafted from grade 316 stainless steel for superior corrosion resistance and durability. Available in sizes from 1/4" to 1-1/4", this turnbuckle is ideal for marine and industrial applications. Meeting ASTM F1145-05 (2011) Type 1, Class C specifications, and with a Working Load Limit (WLL) of 800 lb, this turnbuckle is Drop Forged and MIL-SPEC compliant.

Product Specifications

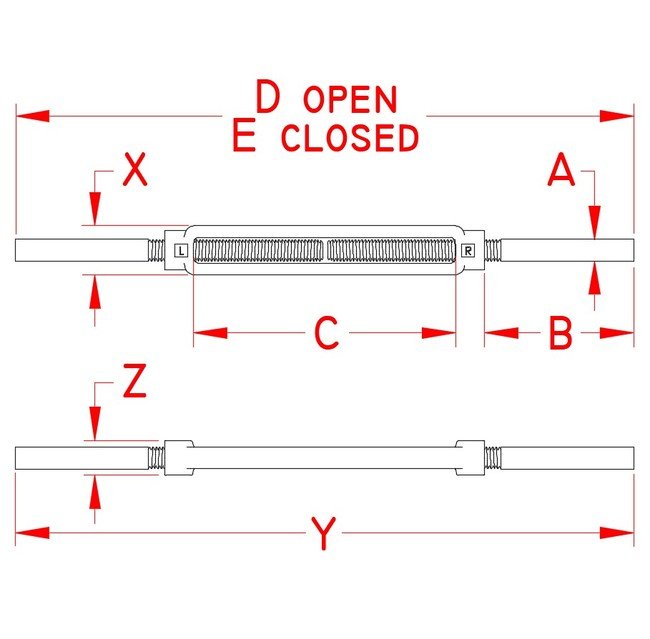

Specifications Dimension A

5/16 in

Specifications Dimension B

2.50 in

Specifications Dimension C

4.50 in

Specifications Dimension D

14.90 in

Specifications Dimension E

10.50 in

Specifications Dimension X

0.85 in

Specifications Dimension Y

10.50 in

Specifications Dimension Z

0.58 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655

Specifications Suncor Exclusive

Yes

Specifications Weight

0.43 lb

Specifications Working Load Limit Wll

800 lb

CAGE

1CXX6

NAICS

332510

PSC

4030

Stainless Steel Forged Stub Turnbuckle
