Stainless Steel Forged Turnbuckle Body, Grade 316, ASTM F1145-92 Type 1

Name: Stainless Steel Forged Turnbuckle Body, Grade 316, ASTM F1145-92 Type 1
Brand: Suncor Stainless, Inc.
SKU: STA-ec56e9
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-ec56e9

Grade 316 Stainless Steel Turnbuckle Body, ASTM F1145 Type 1, WLL 3500 lb. Ideal for marine & industrial use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

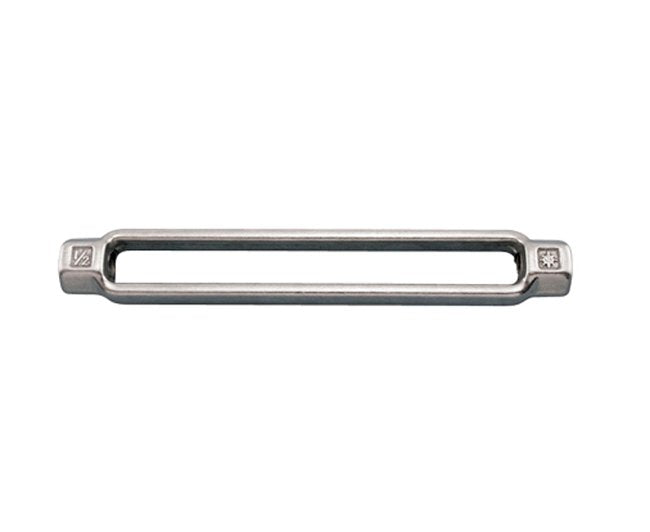

Upgrade your marine and industrial projects with our Forged Turnbuckle Body in grade 316 stainless steel. Ranging from 1/4" to 1-1/4", this corrosion-resistant and durable body meets ASTM F1145-92 Type 1 specifications. With a Working Load Limit of 3500 lb, it's perfect for heavy-duty applications.

Product Specifications

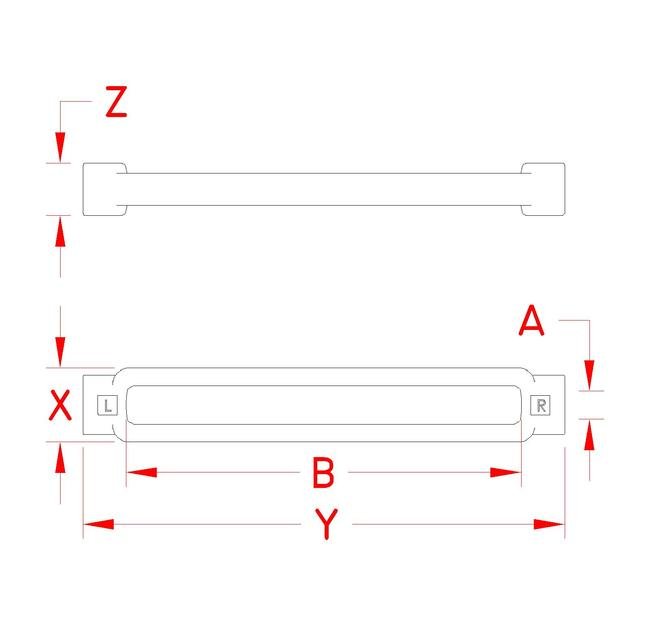

Specifications Dimension A

5/8 in

Specifications Dimension B

6.00 in

Specifications Dimension X

1.38 in

Specifications Dimension Y

7.81 in

Specifications Dimension Z

0.96 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASTM F1145-92 | MIL-DTL-32655 | Type 1

Specifications Suncor Exclusive

Yes

Specifications Weight

0.90 lb

Specifications Working Load Limit Wll

3500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

Stainless Steel Forged Turnbuckle Body, Grade 316, ASTM F1145-92 Type 1
