Stainless Steel Forged Turnbuckle Body T316 ASTM F1145-92 Type 1 Class H
Stainless Steel Forged Turnbuckle Body T316 ASTM F1145-92 Type 1 Class H
SKU:WIR-5fda90
Premium Stainless Steel Turnbuckle meeting ASTM F1145-92 Type 1 Class H standards
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Forged Turnbuckle Body T316 ASTM F1145-92 Type 1 Class H
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Forged Turnbuckle Body T316 ASTM F1145-92 Type 1 Class H
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

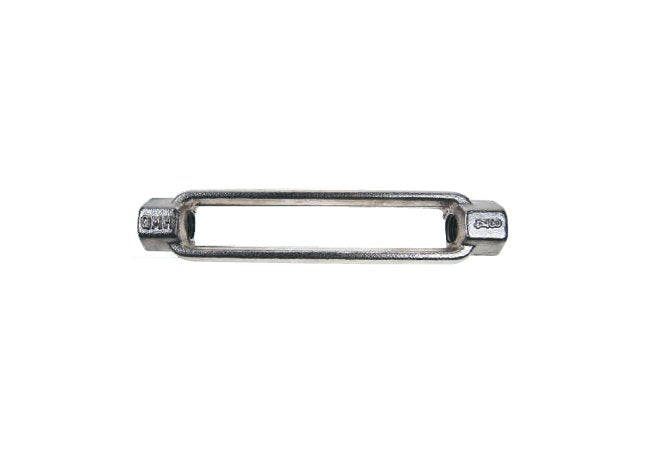

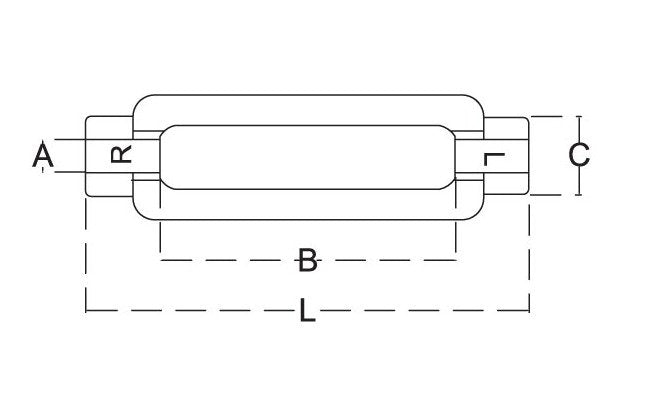

The Forged SS T316 is a high-quality hex body turnbuckle designed to meet the stringent dimensions outlined in ASTM specification F1145-92 Type 1, Class H. Crafted for durability and reliability, this U.S. Type turnbuckle boasts a sturdy construction suitable for a wide range of applications. With dimensions A: 1/2", B: 6.00", C: 1.15", L: 7.50", it offers a Working Load Limit (WLL) of 2,200 lbs and weighs only 0.52 lbs. Ideal for wire rope hardware applications requiring strength and precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
1/2"
Specifications B
6.00"
Specifications C
1.15"
Specifications L
7.50"
Specifications Wll Lbs
2,200
Specifications Wt Lb
0.52
