Stainless Steel Gland Connector Orifice - RB82502 Series

Name: Stainless Steel Gland Connector Orifice - RB82502 Series
Brand: Bird Precision
SKU: ORI-bc6094
Price: 29.99 USD
Availability: OutOfStock

SKU:ORI-bc6094

Precision stainless steel gland orifice for secure face sealing in stainless tube applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

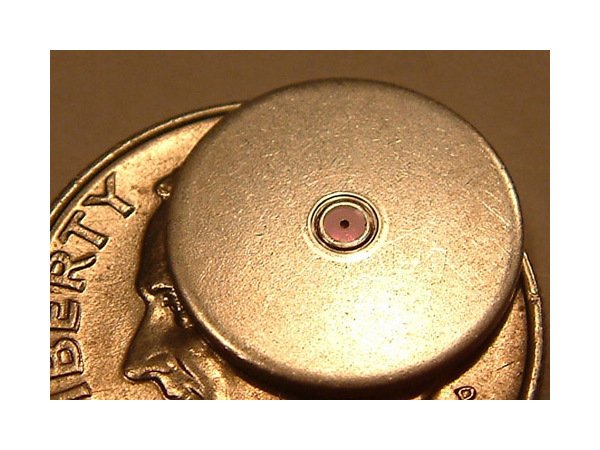

The RB82502 Series Stainless Steel Gland Connector Orifice ensures a secure face seal for stainless tube applications. With a 0.020" inner diameter and a 0.475" diameter, this orifice features a sharp edge ruby straight-hole design for precision. The silver-plated gasket resists galling and offers customization options for unique application needs. Laser drilled and wire-lapped for roundness and accuracy, this orifice series guarantees low flow with exceptional repeatability, starting from 7.5 microns.

Product Specifications

Additional Information Additional Information

This gasket comes with a silver plate which helps resist galling. This gasket comes with our sharp edge ruby series in sizes from 0.0004" thru 0.035". This item can be customized for your unique application needs.This Sharp Edge Ruby Orifice series is laser drilled and wire lapped to insure Roundness, surface finish and sharp edges.This orifice series is a good choice where the designer requires low flow, accuracy and repeatability. This orifice series has a complete micron series starting at 7.5 microns.

Specifications Diameter

0.475 in

Specifications Material

Stainless Steel

Specifications Orifice Inner Diameter Id

0.0200 in

Specifications Orifice Outer Diameter Od

0.060 in

Specifications Orifice Style

Sharp Edge Ruby Straight-Hole

Specifications Product Style

Gland/Gasket

Specifications Product Type

Orifice Connectors Fittings

Specifications Series

RB82502

Specifications Suggested Pressures

0.060 O.D. - Low Pressure (Under 150 psi) | 0.118 O.D. - Medium Pressure (5000 psi or lower) | 0.087 O.D. - High Pressure (Above 5000 psi)

Specifications Vacuum Coupling Radiation Vcr Size

1/4
