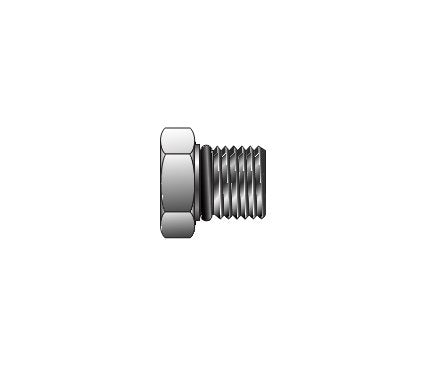

Stainless Steel Hex Head Plug P5ON BSPP Connection
Stainless Steel Hex Head Plug P5ON BSPP Connection
SKU:FIT-1cb4e3
High-quality Stainless Steel Hex Head Plug for leak-free industrial connections. Precision-engineered for durability & performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Hex Head Plug P5ON BSPP Connection
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Hex Head Plug P5ON BSPP Connection
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Equip your industrial applications with Parker's precision-engineered Hex Head Plug P5ON fitting. Crafted from high-quality stainless steel, this leak-free instrument pipe fitting ensures reliable process and instrumentation connections. With adherence to strict quality control and meeting ANSI standards, this hex head plug is designed for durability and performance in diverse settings.
Product Specifications

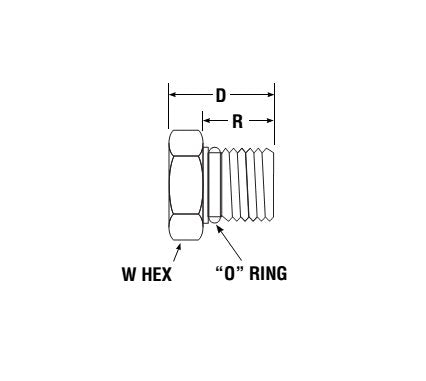

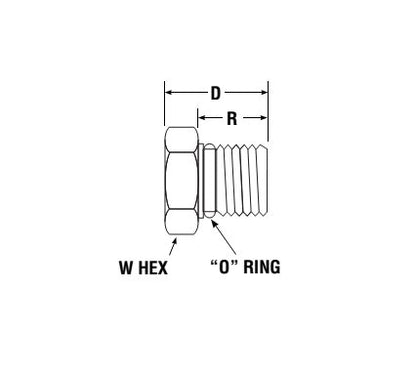

Dimensions Connection Type
BSPP
Dimensions D
1.09 in
Dimensions D2 Drill
.66 in
Dimensions Interchanges With
12 PST
Dimensions L2
.59 in
Dimensions O Ring
3-912
Dimensions Port Thd Ununf 2a
1 1/16-12
Dimensions R
.59 in
Dimensions W Hex
1 1/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
