Stainless Steel High-Pressure Male/Male Adapters
Stainless Steel High-Pressure Male/Male Adapters
SKU:PDU-5103c3
Enhance your system with durable Stainless Steel Male/Male Adapters. Precision-engineered for reliability.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel High-Pressure Male/Male Adapters
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel High-Pressure Male/Male Adapters
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your high-pressure systems with our Stainless Steel High-Pressure Male/Male Adapters, designed for durability and reliability. Available in low, medium, and high-pressure configurations, these one-piece adapters are machined from cold worked stainless steel, ensuring robust performance. With a hex size of 0.81 inches and a length of 1.88 inches, these adapters are precision-engineered to meet your exacting standards. For customized material options, reach out to our Sales Representative. Trust Autoclave's quality for seamless connections that last.
Product Specifications
Additional Information Additional Information

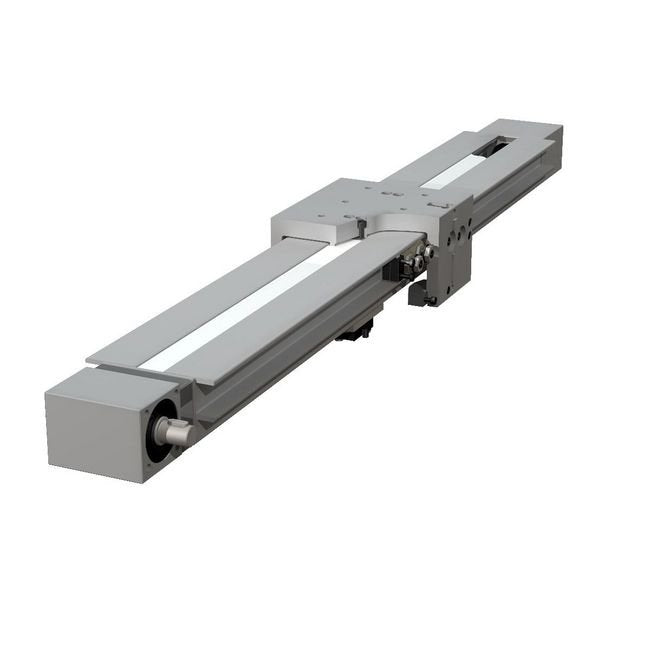

Additional options for the PDU2 include motor/gearbox mounts, limit and proximity switches, T-nuts, T-slot covers, gearboxes, motors, and electric brakes.PDU2's patented wheel technology gives this small belt driven system considerable load capacity for its size. The modular design of the PDU2 allows for quick and easy gantry configuration. Adapter plates can be ordered for connecting PDU2's together, or MCS aluminum framing brackets and extrusion may be ordered to create a machine structure. PDU2 features an aluminum beam up to 6 meters in length with T-slots, if desired. Aluminum beams without T-slots are ideal for washdown applications, and they will not trap dirt. Additional options for the PDU2 include motor/gearbox mounts, limit and proximity switches, T-nuts, T-slot covers, gearboxes, motors, and electric brakes. Ideal for demanding single axis systems and multi-axis applicationsUltra-high performance wheels mounted on adjustable eccentric studsLeft, right, or double drive shaft outputs availableMultiple carriages are possible on a single unitOptions include brakes, position encoders, and mechanical or inductive limit switches
Pdu2m Moment Load Design Pdu2m Moment Load Design
Suitable for demanding single-axis systems and multi-axis applications, the PDU2M delivers a 50% higher load capacity, a 200% increase in moment load capacity and a 1,000% improvement in moment load stiffness compared to the standard PDU2. It provides a cost competitive, high performance and low maintenance linear solution for an even wider range of applications.Essentially a modified PDU2, the PDU2M comprises a rigid but lightweight aluminium slotted profile into which fits the toothed belt drive and carriage, an arrangement that effectively encloses the unit. It is rated for operating speeds of up to 6m/s and available with a choice of motors providing driving forces up to 280N. Ultra high performance Herculane wheels mounted on adjustable eccentric studs run virtually friction-free on the inside of the profile and provide stable support for the carriage plate. Several carriage styles make quick and easy construction of multi axis systems attainable.PDU2M is fully compatible with the MCS aluminium machine construction system and is ideal as a replacement for failing ball-based systems that are unable to match its speed and reliability.
Specifications Carriage Load Capacity L1
500 N
Specifications Carriage Load Capacity L2
500 N
Specifications Carriage Load Capacity M
14 N·m
Specifications Carriage Load Capacity Ms
5 N·m
Specifications Carriage Load Capacity Mv
14 N·m
Specifications Driving Forces
280 N
Specifications High Load Capacity
750 N | 15 N·m
Specifications Model
PDU2
Specifications Speed
0 to 6 m/s
