Stainless Steel Hinge Shaft Collar 1-1/4"

Name: Stainless Steel Hinge Shaft Collar 1-1/4"
Brand: Stafford Manufacturing Corp.
SKU: ROU-239c1f
Price: 49.99 USD
Availability: OutOfStock

SKU:ROU-239c1f

Enhance operational efficiency with Stafford's Stainless Steel Hinge Shaft Collar - perfect for fast assembly in various environments.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

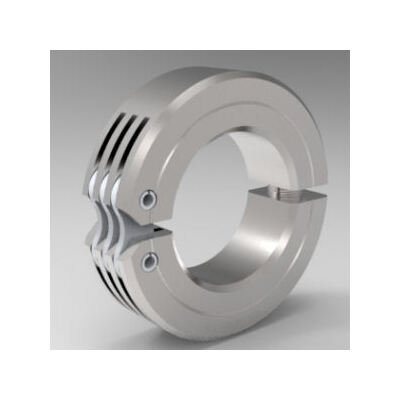

The Stainless Steel Hinge Shaft Collar 1-1/4" from Stafford offers unmatched convenience and versatility. Featuring a triple-link hinge design and captive screw, this collar combines the flexibility of a two-piece collar with the simplicity of a one-piece unit. Perfect for fast operations in hostile environments, it ensures quick assembly and disassembly without the risk of lost screws. With a smooth bore that protects shafts from damage, this collar provides exceptional axial holding power. Stocked in steel and stainless steel, this collar is a reliable choice for standard round shafts, hard or soft, thin-wall tubes, or split hubs.

Product Specifications

Dimensional Attributes Bore Size

1-1/4 in

Dimensional Attributes Outside Diameter

2.063 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.500 in

Specifications Alloy

304

Specifications Approximate Weight

0.26 lb

Specifications Country Of Origin

China

Specifications Finish

Matte

Specifications Material

Stainless Steel

Specifications Part Number

32S104H

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Standard

Specifications Type

Economy

Specifications Upc Code

662786034701

Stainless Steel Hinge Shaft Collar 1-1/4"
