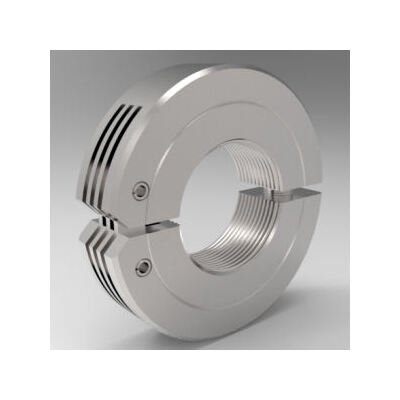

Stainless Steel Hinge Shaft Collar for UNF/UNC Threaded Shafts

Name: Stainless Steel Hinge Shaft Collar for UNF/UNC Threaded Shafts
Brand: Stafford Manufacturing Corp.
SKU: THR-eeb2e6
Price: 25.99 USD
Availability: OutOfStock

SKU:THR-eeb2e6

High strength, fumble-free Stainless Steel Hinge Shaft Collar for precise axial holding on UNF/UNC threaded shafts

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Hinge Shaft Collar for UNF/UNC Threaded Shafts offers superior holding power over traditional set-screw collars. Designed for standard UNF (fine thread) or UNC (coarse thread) shafts, this collar features a hinge type design for quick operation in demanding environments. Available in High Strength or Low Profile styles, this collar eliminates fumbling with no loose screws, providing secure axial holding power while being gentle on shafts. Precision manufactured in the USA from 303-grade alloy, RoHS2 and REACH compliant, this collar assures durability, ease of assembly, and repositioning on various shaft types.

Product Specifications

Dimensional Attributes Outside Diameter

3.500 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

5/16-24 x 1

Dimensional Attributes Threaded Bore Size

2-1/4-12

Dimensional Attributes Width

0.625 in

Specifications Alloy

303

Specifications Approximate Weight

0.87 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

3S204FH

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786014710
