Stainless Steel Hinge-Top Floor Scale Model FCQH
Stainless Steel Hinge-Top Floor Scale Model FCQH
SKU:FLO-e8a843
Precision and durability in stainless steel. Legal-for-trade compliance. Customize for specific requirements.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
Stainless Steel Hinge-Top Floor Scale Model FCQH
$2,399.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Hinge-Top Floor Scale Model FCQH
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

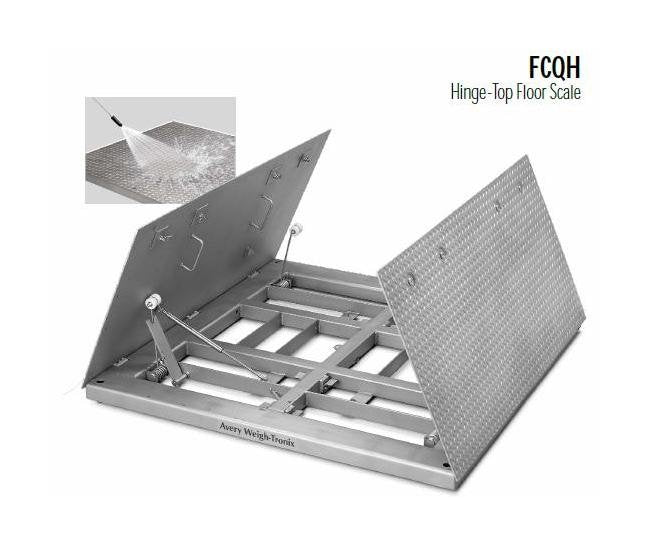

The Stainless Steel Hinge-Top Floor Scale Model FCQH by Avery Weigh-Tronix is engineered for precision weighing in industrial settings. Featuring complete stainless steel construction, this scale ensures durability and accuracy. The hermetically sealed Weigh Bars® along with the stainless steel junction box guarantee reliable performance. This legal-for-trade scale meets CoC# 03-003, Class III 5,000 Divisions standards. Customizable with options such as ramps and accessories, it offers flexibility to suit diverse operational needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Options Options
[28209-0026] - Bolt down floor plate, stainless steel (5,000 lb) | [28212-0013] - Straight ramp attachment bracket, stainless steel (5,000 lb) | [28213-0020] - Bolt down floor plate, stainless steel (10,000 lb) | [28216-0019] - Straight ramp attachment bracket, stainless steel (10,000 lb) | Extra interface cable
Specifications Capacity
5,000 to 10,000 lb | 2,500 to 5,000 kg
Specifications Height
4.06 in | 10.3 cm
Specifications Length
72 in
Specifications Model Number
FCQH7248-10
Specifications Notes

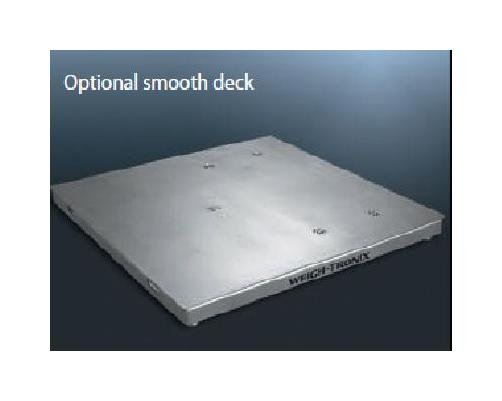

10,000 lb decks may be legally installed as a 5,000 lb capacity scale with 1 lb increments. When used as a 5,000 lb scale, 10,000 ramps, pit frames and options are required.Scale with smooth top available on request (use tread list price for reference)
Specifications Ramps
28208-0019, 48" Ramp, 10000 lb Capacity | 28208-0027, 60" Ramp, 10000 lb Capacity | 28208-0035, 72" Ramp, 10000 lb Capacity
Specifications Shipping Weight
725 lb | 330 kg
Specifications Width
48 in
