Stainless Steel Invisiware Receiver for Architectural Cable Railings

Stainless Steel Invisiware Receiver for Architectural Cable Railings

SKU:ARC-9fd5ef

Premium Stainless Steel Invisiware Receiver for Architectural Cable Railings - 316 Stainless Steel, Threaded Terminal, 2" Std. Pipe Frame, 5/16-24 Thread Tap, 2.301" Length, Meets Federal/DoD Standards

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Stainless Steel Invisiware Receiver for Architectural Cable Railings

Stainless Steel Invisiware Receiver for Architectural Cable Railings

$29.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Invisiware Receiver for Architectural Cable Railings

Stainless Steel Invisiware Receiver for Architectural Cable Railings

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

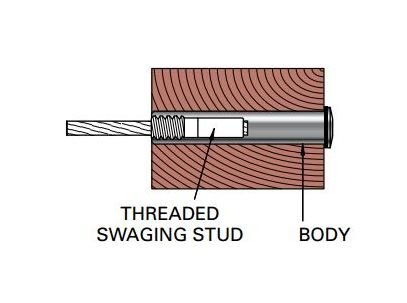

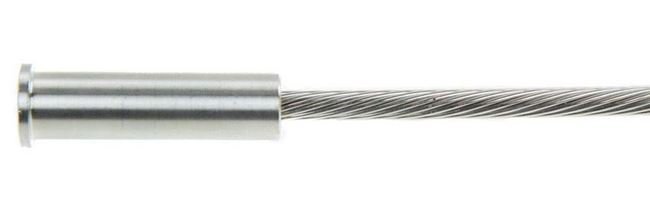

The Stainless Steel Invisiware Receiver is a premium component designed for Architectural Cable Railings. Crafted from high-quality 316 stainless steel, this threaded terminal with receiver is suitable for wire rope diameters of 1/8" and 3/16". With a 2" Std. Pipe frame option and precise specifications including a 5/16-24 thread tap, 2.301" length, 0.437" body diameter, and 0.537" head diameter, this receiver ensures strength, durability, and easy installation. Compliant with Federal/DoD procurement standards and suitable for institutional buyers seeking top-tier railing components.

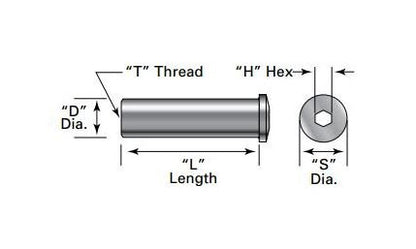

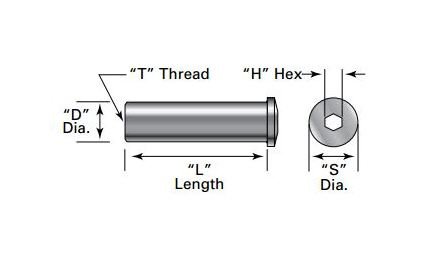

Product Specifications

Specifications Body Diameter
0.437"
Specifications Frame Option
2" Std. Pipe
Specifications Head Diameter
0.537"
Specifications Length
2.301"
Specifications Thread Tap
5/16-24
Specifications Wire Rope Dia
1/8", 3/16"
CAGE
0T9L4
NAICS
332510
PSC
4030
