Stainless Steel Invisiware Receiver with Threaded Terminals

Name: Stainless Steel Invisiware Receiver with Threaded Terminals
Brand: Lexco Cable Manufacturing
SKU: ARC-7ffef0
Price: 29.99 USD
Availability: OutOfStock

SKU:ARC-7ffef0

High-quality stainless steel receiver with threaded terminals, ideal for cable railing systems.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

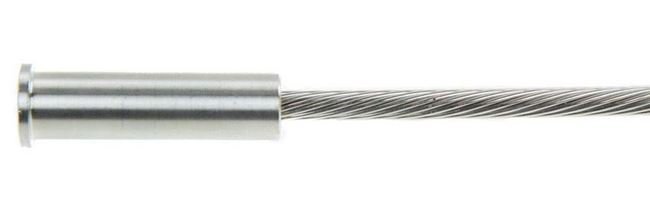

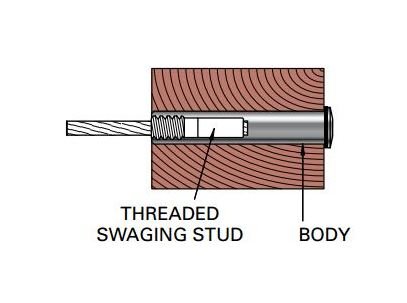

The Invisiware Receiver offers premium stainless steel construction, compatible with wire rope diameters of 1/8" and 3/16". Designed to fit 1-1/4" Std. Pipe or 1-1/2" Tube, this receiver features a 5/16-24 thread tap, ensuring secure connections. With a body diameter of 0.437" and a sleek head diameter of 0.537", this receiver is engineered for durability and style in architectural cable railing applications.

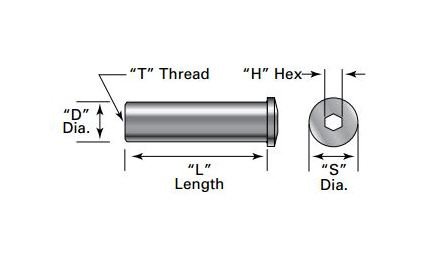

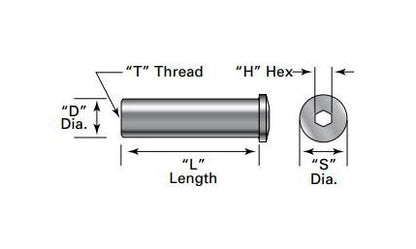

Product Specifications

Specifications Body Diameter

0.437"

Specifications Frame Option

1-1/4" Std. Pipe, 1-1/2" Tube

Specifications Head Diameter

0.537"

Specifications Length

1.562"

Specifications Thread Tap

5/16-24

Specifications Wire Rope Dia

1/8", 3/16"

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Invisiware Receiver with Threaded Terminals
