Stainless Steel Jaw & Eye Swivel - Fed. Spec. Compliant
Stainless Steel Jaw & Eye Swivel - Fed. Spec. Compliant
SKU:STA-1acc6f
Heavy-duty 316 Stainless Steel Swivel with 5,200 lb load capacity. Federal Spec RR-C-271F compliant.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Stainless Steel Jaw & Eye Swivel - Fed. Spec. Compliant
$45.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Jaw & Eye Swivel - Fed. Spec. Compliant
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

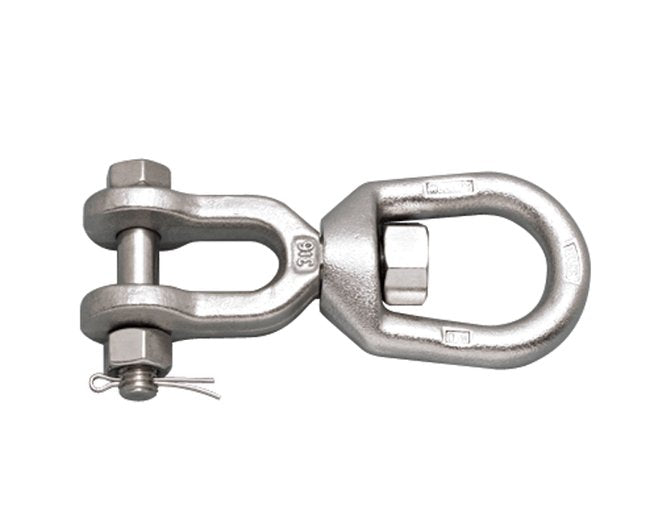

The Stainless Steel Jaw & Eye Swivel is a premium lifting and rigging solution designed to eliminate twists in chain, wire rope, or cordage. Crafted from high-grade 316 stainless steel, this swivel offers superior corrosion resistance and durability, supporting loads up to 5,200 lbs. Ideal for applications requiring frequent attaching and detaching, it adheres to Federal Specification: RR-C-271F Type VII, Class 3 (except 316 stainless steel). Ensure precise positioning with this non-rotating device that meets the highest industry standards.

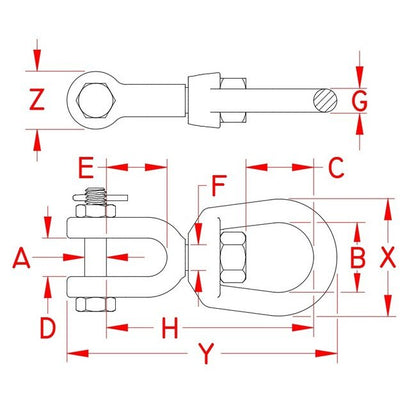

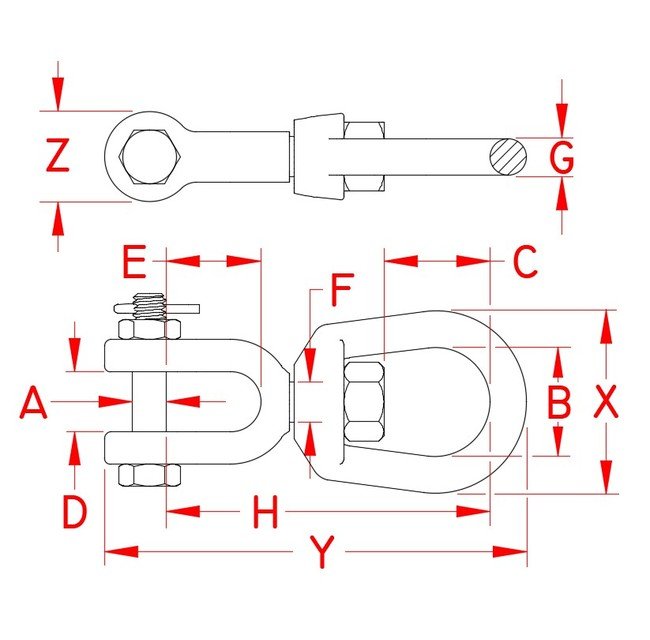

Product Specifications
Specifications Dimension A
1/4 in
Specifications Dimension B
0.75 in
Specifications Dimension C
0.80 in
Specifications Dimension D
0.50 in
Specifications Dimension E
0.85 in
Specifications Dimension F
0.31 in
Specifications Dimension G
0.25 in
Specifications Dimension H
2.58 in
Specifications Dimension X
1.67 in
Specifications Dimension Y
3.32 in
Specifications Dimension Z
0.74 in
Specifications Fabrication Type
Drop Forged
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
Class 2 | Fed. Spec. RR-C-271F | MIL-DTL-32655 | Type VII
Specifications Suncor Exclusive
Yes
Specifications Weight
0.22 lb
Specifications Working Load Limit Wll
900 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
