Stainless Steel Jaw & Eye Turnbuckle | ASTM F1145-92 Type 1, Class H | 5/8" x 8.50"

Name: Stainless Steel Jaw & Eye Turnbuckle | ASTM F1145-92 Type 1, Class H | 5/8" x 8.50"
Brand: Lexco Cable Manufacturing
SKU: WIR-46078a
Price: 32.99 USD
Availability: OutOfStock

SKU:WIR-46078a

Durable stainless steel turnbuckle meeting ASTM F1145-92 Type 1, Class H standards. Perfect for heavy-duty wire rope applications.

$32.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

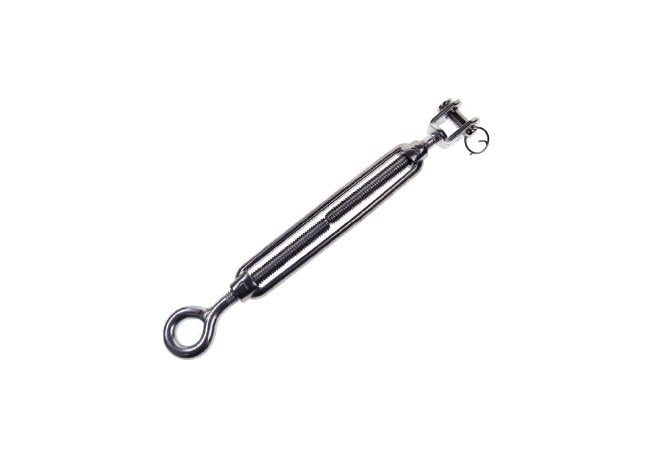

Our Stainless Steel Jaw & Eye Turnbuckle is a U.S. Type, hex body turnbuckle that meets the dimensions of ASTM Specification F1145-92 Type 1, Class H. With attributes like A: 5/8", B: 8.50", WLL: 2,800 lbs, this turnbuckle is built for durability and reliability in wire rope applications. It is designed to withstand heavy loads and harsh environments, making it ideal for both consumer and institutional use. Trust in its quality and compliance with ASTM standards for your wire rope hardware needs.

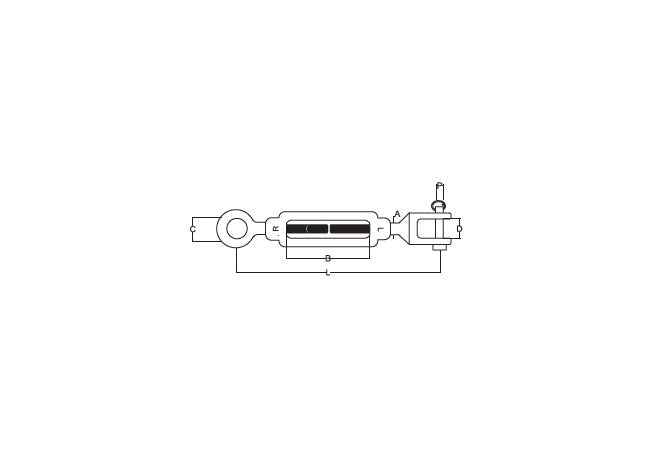

Product Specifications

Specifications A

5/8"

Specifications B

8.50"

Specifications C

0.89"

Specifications D

0.87"

Specifications L

14-1/4"

Specifications P

0.52"

Specifications Wll Lbs

2,800

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Jaw & Eye Turnbuckle | ASTM F1145-92 Type 1, Class H | 5/8" x 8.50"
