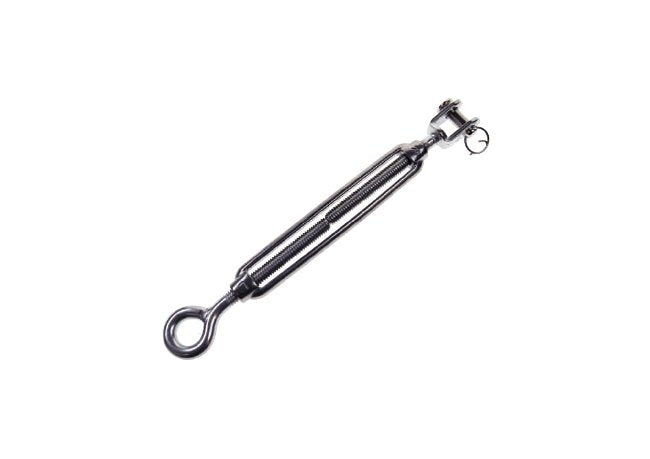

Stainless Steel Jaw & Eye Turnbuckles - ASTM F1145-92 Type 1, Class H

Name: Stainless Steel Jaw & Eye Turnbuckles - ASTM F1145-92 Type 1, Class H
Brand: Lexco Cable Manufacturing
SKU: WIR-a8ce51
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-a8ce51

Discover high-strength Stainless Steel Jaw & Eye Turnbuckles meeting ASTM F1145-92 Type 1, Class H standards. Perfect for wire rope applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Stainless Steel Jaw & Eye Turnbuckles are U.S. Type, HEX BODY, engineered to meet the dimensions of ASTM F1145-92 Type 1, Class H specifications. With attributes including A: 3/4", B: 6.00", WLL: 3,500 lbs, these turnbuckles provide exceptional strength and durability for various applications. Ideal for wire rope assemblies, rigging, and tensioning tasks, these turnbuckles offer reliable performance in demanding environments.

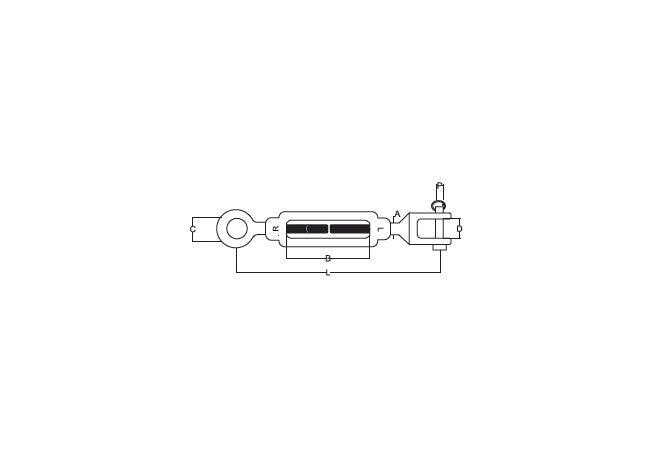

Product Specifications

Specifications A

3/4"

Specifications B

6.00"

Specifications C

1.12"

Specifications D

0.80"

Specifications L

13-7/8"

Specifications P

0.76"

Specifications Wll Lbs

3,500

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Jaw & Eye Turnbuckles - ASTM F1145-92 Type 1, Class H
