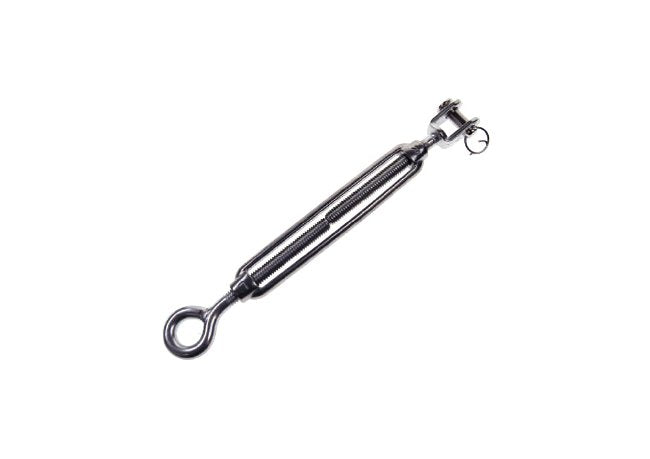

Stainless Steel Jaw & Eye Turnbuckles ASTM F1145-92 Type 1 Class H

Name: Stainless Steel Jaw & Eye Turnbuckles ASTM F1145-92 Type 1 Class H
Brand: Lexco Cable Manufacturing
SKU: WIR-fdb2bf
Price: 34.99 USD
Availability: OutOfStock

SKU:WIR-fdb2bf

Precision-engineered Stainless Steel Turnbuckles meeting ASTM F1145-92 Type 1 Class H standards.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Stainless Steel Jaw & Eye Turnbuckles are U.S. Type, HEX BODY turnbuckles that meet the precise dimensions of ASTM Specification F1145-92 Type 1, Class H. Built for durability and reliability, these turnbuckles are suitable for a wide range of applications. With a Working Load Limit of 2,200 lbs, they provide robust support and tension adjustment capabilities. Trust in the quality and compliance of these turnbuckles to meet your wire rope hardware needs.

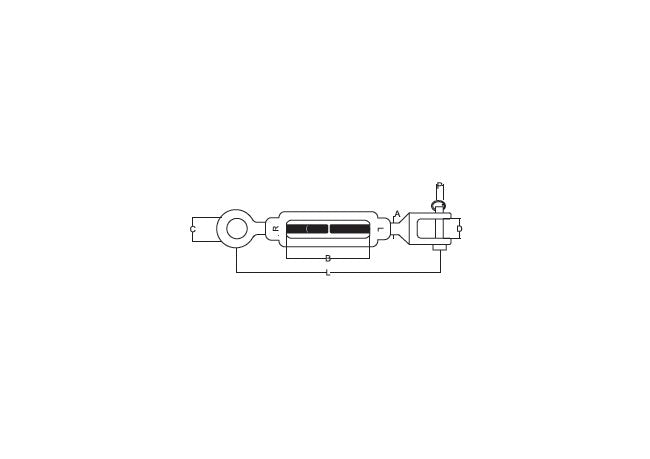

Product Specifications

Specifications A

1/2"

Specifications B

6.68"

Specifications C

0.75"

Specifications D

0.62"

Specifications L

11"

Specifications P

0.47"

Specifications Wll Lbs

2,200

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Jaw & Eye Turnbuckles ASTM F1145-92 Type 1 Class H
