Stainless Steel Jaw & Jaw Turnbuckles - ASTM F1145-92 Type 1, Class H

Name: Stainless Steel Jaw & Jaw Turnbuckles - ASTM F1145-92 Type 1, Class H
Brand: Lexco Cable Manufacturing
SKU: WIR-239438
Price: 49.99 USD
Availability: OutOfStock

SKU:WIR-239438

Enhance rigging setups with durable Stainless Steel Turnbuckles meeting ASTM standards. Ideal for reliable and strong connections.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

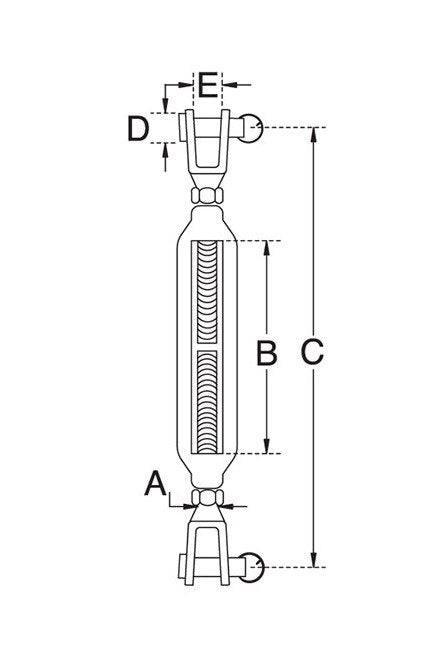

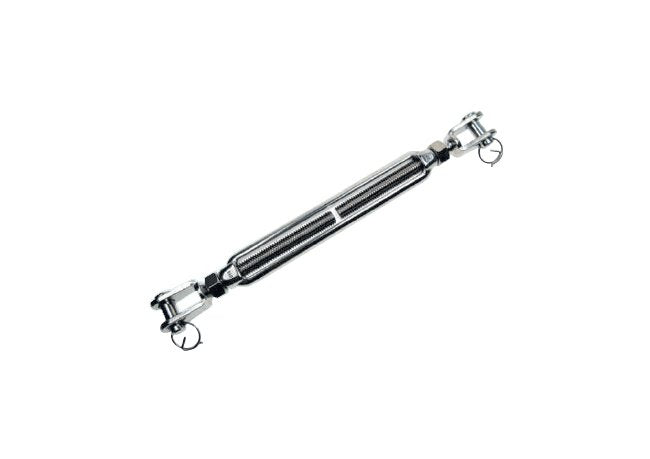

Enhance your rigging setup with our Stainless Steel Jaw & Jaw Turnbuckles. These U.S. Type, hex body turnbuckles are precision cast from durable Stainless Steel Type 316, meeting ASTM Specification F1145-92 Type 1, Class H standards. With a Working Load Limit of 3,500 lbs, these turnbuckles offer reliability and strength for various applications. The dimensions A: 3/4", B: 10.25", C: 18.25", D: 0.76", E: 0.80" ensure a precise fit. Invest in quality with a 4.50 lbs turnbuckle that combines performance with longevity.

Product Specifications

Specifications A

3/4"

Specifications B

10.25"

Specifications C

18.25"

Specifications D

0.76"

Specifications E

0.80"

Specifications Weight Lbs

4.50

Specifications Wll Lbs

3,500

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Jaw & Jaw Turnbuckles - ASTM F1145-92 Type 1, Class H
