Stainless Steel Jaw & Jaw Turnbuckles - ASTM F1145-92 Type 1 Class H

Name: Stainless Steel Jaw & Jaw Turnbuckles - ASTM F1145-92 Type 1 Class H
Brand: Lexco Cable Manufacturing
SKU: WIR-834015
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-834015

Premium Stainless Steel Turnbuckles meeting ASTM F1145-92 Type 1 Class H standards, with 1,300 lbs WLL

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

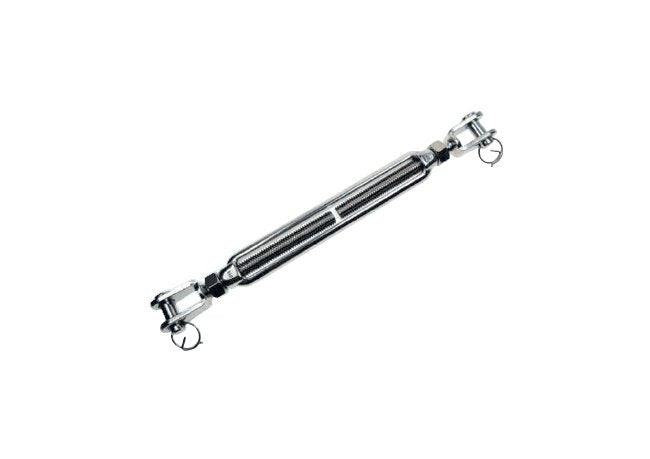

The Stainless Steel Jaw & Jaw Turnbuckles are U.S. TYPE precision cast using high-quality Stainless Steel Type 316, meeting the ASTM Specification F1145-92 Type 1, Class H dimensions. Featuring a hex body design, these turnbuckles are durable and reliable for various applications. With a Working Load Limit (WLL) of 1,300 lbs and a weight of only 1.25 lbs, these turnbuckles offer strength and performance in demanding conditions.

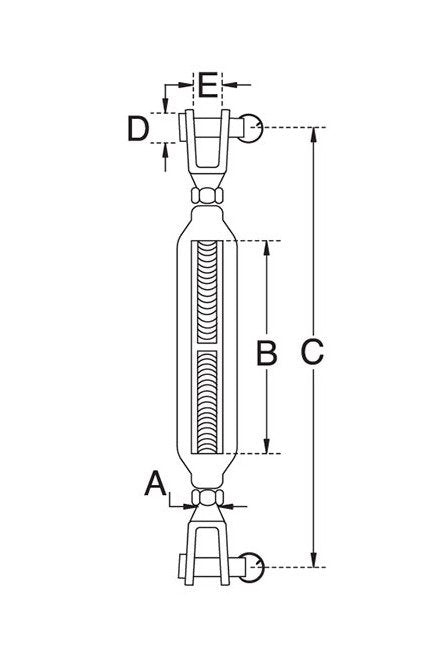

Product Specifications

Specifications A

3/8"

Specifications B

4.82"

Specifications C

8.75"

Specifications D

0.36"

Specifications E

0.50"

Specifications Weight Lbs

1.25

Specifications Wll Lbs

1,300

CAGE

0T9L4

NAICS

332510

PSC

4030
