Stainless Steel Jaw & Jaw Turnbuckles - ASTM F1145-92 Type 1 Class H

Name: Stainless Steel Jaw & Jaw Turnbuckles - ASTM F1145-92 Type 1 Class H
Brand: Lexco Cable Manufacturing
SKU: WIR-52d307
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-52d307

High-quality Stainless Steel Turnbuckles meeting ASTM F1145-92 Type 1 Class H standards for durability and performance. WLL: 3,500 lbs.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

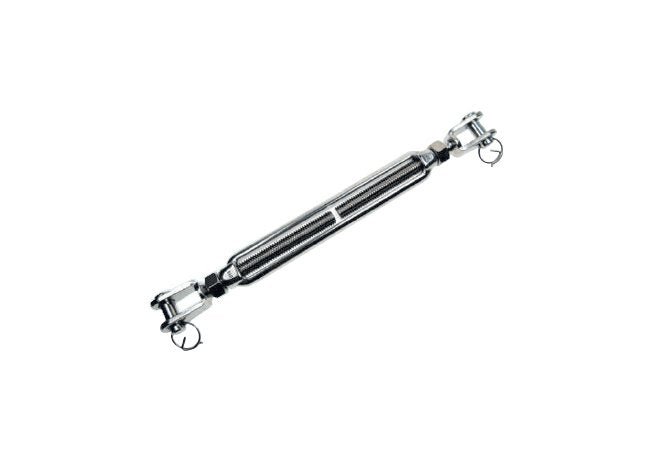

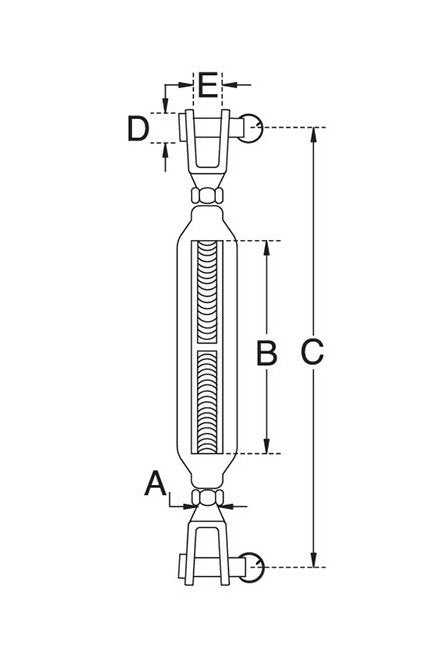

The Stainless Steel Jaw & Jaw Turnbuckles are U.S. Type turnbuckles precision cast from Stainless Steel Type 316 to meet ASTM specification F1145-92 Type 1, Class H. With a hex body design, these turnbuckles offer exceptional durability and strength. Featuring dimensions A: 3/4", B: 6.00", C: 14.25", D: 0.76", E: 0.80", these turnbuckles have a Working Load Limit (WLL) of 3,500 lbs. Ideal for wire rope applications, these turnbuckles provide reliable performance in various settings.

Product Specifications

Specifications A

3/4"

Specifications B

6.00"

Specifications C

14.25"

Specifications D

0.76"

Specifications E

0.80"

Specifications Weight Lbs

3.75

Specifications Wll Lbs

3,500

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Jaw & Jaw Turnbuckles - ASTM F1145-92 Type 1 Class H
