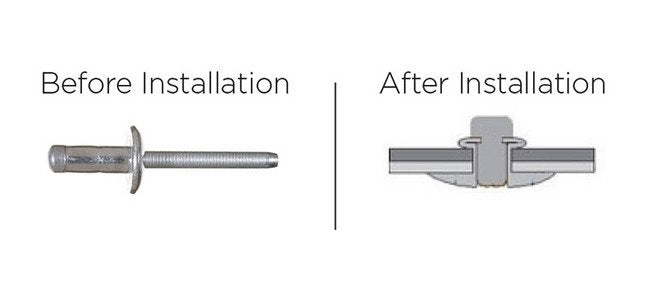

  • Stainless Steel Large Head Rivet - Orlock™ 14.5mm Body Length - Image 2
1 2
Ornit USA →

Stainless Steel Large Head Rivet - Orlock™ 14.5mm Body Length

Stainless Steel Large Head Rivet - Orlock™ 14.5mm Body Length

ORL-30ae1a

Durable Stainless Steel Large Head Rivet for industrial applications. High strength, secure joints in extreme conditions.

$59.99
$59.99
Sale

Initiate Order

Stainless Steel Large Head Rivet - Orlock™ 14.5mm Body Length

Stainless Steel Large Head Rivet - Orlock™ 14.5mm Body Length

$59.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Large Head Rivet - Orlock™ 14.5mm Body Length

Stainless Steel Large Head Rivet - Orlock™ 14.5mm Body Length

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlock™ Stainless Steel Large Head Rivet offers exceptional strength and durability, making it ideal for heavy-duty applications like trailer manufacturing and solar frames. Constructed from AISI 304 Austenitic Stainless Steel, this rivet ensures a permanent, secure joint even in extreme climate conditions. With a 14.5mm body length, a large head for easy installation, and superior grip range, it meets the stringent standards required for industrial use. Tested to withstand forces up to 3256 lbf in shear and 1870 lbf in tension, this rivet is a reliable choice for demanding projects.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Renewable Energy Application
Solar FramesThe Orlock™ Stainless Steel is commonly used in a variety of solar applications worldwide. This stainless steel rivet provides a permanent, secure joint in the most severe climate conditions. Also available in 316.
Nominal Dimensions Body Length
14.5 mm | 0.571 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
16.3 mm | 0.642 in
Nominal Dimensions Head Thickness
3.1 mm | 0.122 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
8.5 mm | 0.335 in
Nominal Dimensions Minimum Grip Range
5.0 mm | 0.197 in
Nominal Forces Nominal Shear Force
1480 kgf | 3256 lbf
Nominal Forces Nominal Tensile Force
850 kgf | 1870 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenic Stainless Steel American Iron and Steel Institute (AISI) 304
