Stainless Steel Locking Studs MS21260

Stainless Steel Locking Studs MS21260

SKU:MIL-9b62cd

High-quality Stainless Steel Locking Studs meeting military specifications for secure wire rope fastening. Choose RH or LH thread.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

Stainless Steel Locking Studs MS21260

Stainless Steel Locking Studs MS21260

$12.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Locking Studs MS21260

Stainless Steel Locking Studs MS21260

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

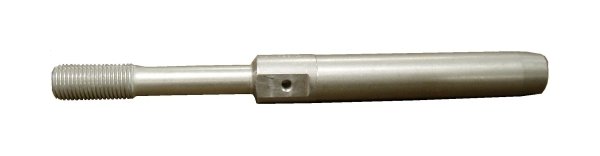

The Stainless Steel Locking Studs MS21260, also known as AN 666 or NAS 650, are designed to provide secure fastening for wire rope assemblies with precision specifications. Featuring options for both right-hand (RH) and left-hand (LH) threads, these locking studs are crafted to fit wire rope diameter of 3/32 inches. With dimensions meeting stringent military standards including thread size #10-32, diameter variations, and precise lengths, these studs ensure reliable performance in demanding applications.

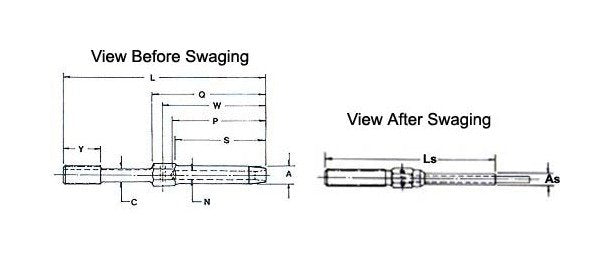

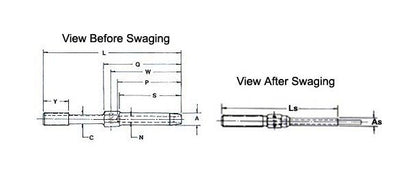

Product Specifications

Specifications As Diam
.190
Specifications A Diam
.218
Specifications C 006 000 Diain
.133
Specifications Lbs Per Piece
.024
Specifications Ls Ref
3.86
Specifications L 063 In
3.738
Specifications Nsn
4030-00-580-6794, 4030005806794
Specifications N Diam
.109
Specifications P In
1.261
Specifications Q 031 016 In
1.581
Specifications R 062 000 Diameter In
.063
Specifications S 062 000 In
1.188
Specifications Thread Size B
#10-32
Specifications To Fit Wire Rope Dia In
3/32
Specifications W In
1.411
Specifications Y 047 In
.500
CAGE
0T9L4
NAICS
332510
PSC
4030
