Stainless Steel Locking Studs MS21260 for Wire Rope

Stainless Steel Locking Studs MS21260 for Wire Rope

SKU:MIL-2d52b7

Precision-engineered Stainless Steel Locking Studs for secure fastening of 3/32" wire ropes, compliant with military specifications.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

Stainless Steel Locking Studs MS21260 for Wire Rope

Stainless Steel Locking Studs MS21260 for Wire Rope

$12.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Locking Studs MS21260 for Wire Rope

Stainless Steel Locking Studs MS21260 for Wire Rope

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

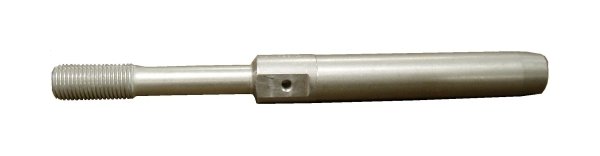

The Stainless Steel Locking Studs MS21260 are precision-engineered to meet the stringent requirements of military specifications. Designed for wire ropes with a diameter of 3/32 inches, these locking studs feature a #10-32 thread size and dimensions that ensure secure fastening. With attributes like precise diameters and a durable construction, these studs offer reliable performance in demanding environments. Compliant with NSN 4030-00-580-6793, these studs are available in both RH and LH thread options, making them versatile for various applications.

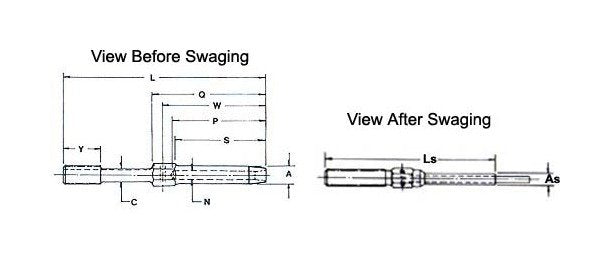

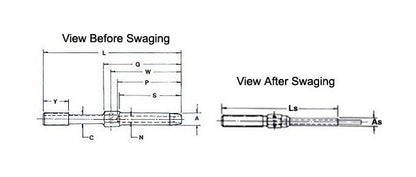

Product Specifications

Specifications As Diam
.190
Specifications A Diam
.218
Specifications C 006 000 Diain
.133
Specifications Lbs Per Piece
.020
Specifications Ls Ref
2.98
Specifications L 063 In
2.863
Specifications Nsn
4030-00-580-6793, 4030005806793
Specifications N Diam
.109
Specifications P In
1.261
Specifications Q 031 016 In
1.581
Specifications R 062 000 Diameter In
.063
Specifications S 062 000 In
1.188
Specifications Thread Size B
#10-32
Specifications To Fit Wire Rope Dia In
3/32
Specifications W In
1.411
Specifications Y 047 In
.500
CAGE
0T9L4
NAICS
332510
PSC
4030
