Choose reliability with our Stainless Steel Locking Studs MS21260, also known as AN 666 and NAS 650. These studs are designed to fit 1/16" wire ropes, featuring a #6-40 thread size and precise dimensions for secure fastening. With a sturdy construction and compliance with military specifications, this product offers exceptional durability and performance, meeting the stringent standards required for government and institutional use.

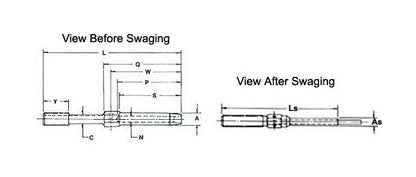

Product Specifications
Specifications As Diam
.138
Specifications A Diam
.160
Specifications C 006 000 Diain
.092
Specifications Lbs Per Piece
.011
Specifications Ls Ref
3.67
Specifications L 063 In
3.491
Specifications Nsn
1640-00-132-9208, 1640001329208
Specifications N Diam
.078
Specifications P In
1.042
Specifications Q 031 016 In
1.319
Specifications R 062 000 Diameter In
.063
Specifications S 062 000 In
.969
Specifications Thread Size B
# 6-40
Specifications To Fit Wire Rope Dia In
1/16
Specifications W In
1.174
Specifications Y 047 In
.375
CAGE
0T9L4
NAICS
332510
PSC
4030
