Stainless Steel Locking Studs MS21260 for Wire Rope, Specify Thread
Stainless Steel Locking Studs MS21260 for Wire Rope, Specify Thread
SKU:MIL-1f3a48

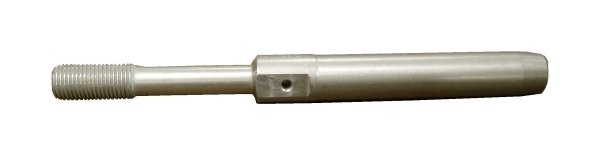

High-quality Stainless Steel Locking Studs MS21260 for 1/4" wire rope, MIL-SPEC compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Locking Studs MS21260 for Wire Rope, Specify Thread
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Locking Studs MS21260 for Wire Rope, Specify Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance safety and security with our Stainless Steel Locking Studs MS21260 designed for 1/4" wire rope. Featuring precise specifications including 3/8-24 thread size, .875" length, and .170 lbs weight per piece. Compliant with MIL-SPEC standards (NSN: 4030-00-580-6776) for military and institutional use.

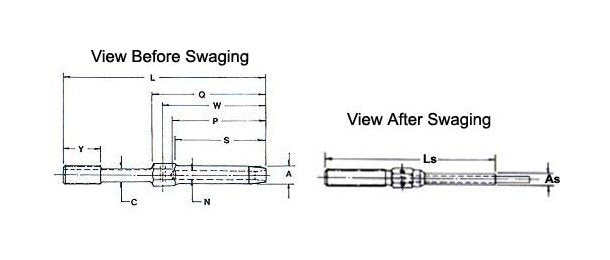

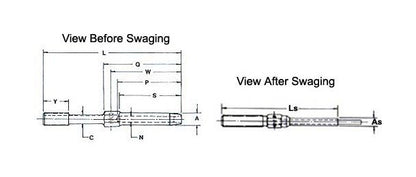

Product Specifications
Specifications As Diam
.438
Specifications A Diam
.494
Specifications C 006 000 Diain
.306
Specifications Lbs Per Piece
.170
Specifications Ls Ref
5.52
Specifications L 063 In
5.218
Specifications Nsn
4030-00-580-6776, 4030005806776
Specifications N Diam
.265
Specifications P In
2.511
Specifications Q 031 016 In
3.061
Specifications R 062 000 Diameter In
.098
Specifications S 062 000 In
2.438
Specifications Thread Size B
3/8-24
Specifications To Fit Wire Rope Dia In
1/4
Specifications W In
2.784
Specifications Y 047 In
.875
CAGE
0T9L4
NAICS
332510
PSC
4030
