Stainless Steel Locking Studs MS21260, Military Specification
Stainless Steel Locking Studs MS21260, Military Specification
SKU:MIL-907720
Secure fastening solution for wire ropes, stainless steel, precise military spec, RH or LH threads
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Stainless Steel Locking Studs MS21260, Military Specification
$25.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Locking Studs MS21260, Military Specification
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Locking Studs MS21260, also known as AN 666 and NAS 650, provide a secure fastening solution designed to fit wire rope diameters of 3/16 inches. Featuring a threaded design with options for RH or LH threads, these locking studs boast precise dimensions including a 5/16-24 Thread Size "B" and meet stringent military specifications. With attributes such as Y +.047, A Diameter, and NSN 4030-00-580-6781, these studs offer reliability in demanding applications.

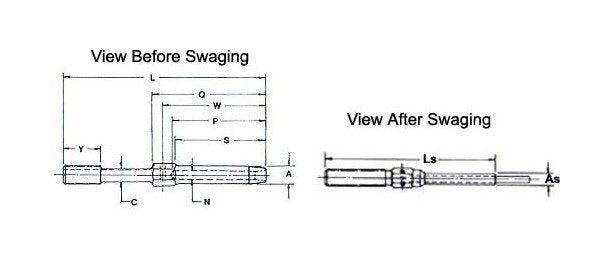

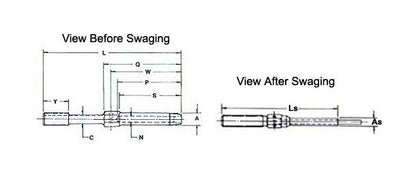

Product Specifications
Specifications As Diam
.313
Specifications A Diam
.359
Specifications C 006 000 Diain
.245
Specifications Lbs Per Piece
.086
Specifications Ls Ref
4.78
Specifications L 063 In
4.612
Specifications Nsn
4030-00-580-6781, 4030005806781
Specifications N Diam
.203
Specifications P In
2.011
Specifications Q 031 016 In
2.455
Specifications R 062 000 Diameter In
.098
Specifications S 062 000 In
1.938
Specifications Thread Size B
5/16-24
Specifications To Fit Wire Rope Dia In
3/16
Specifications W In
2.237
Specifications Y 047 In
.750
CAGE
0T9L4
NAICS
332510
PSC
4030
