Stainless Steel Locking Studs MS21260 - Thread Specify RH/LH

Name: Stainless Steel Locking Studs MS21260 - Thread Specify RH/LH
Brand: Lexco Cable Manufacturing
SKU: MIL-75ac7c
Price: 29.99 USD
Availability: OutOfStock

SKU:MIL-75ac7c

Premium Stainless Steel Locking Studs designed for military applications. Specify RH/LH thread. Fit 3/8" wire rope with precision.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

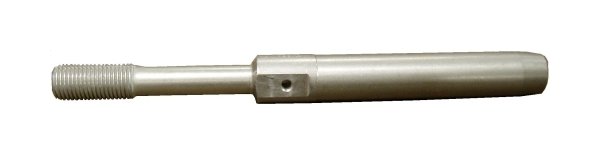

Enhance your military hardware with these premium Stainless Steel Locking Studs MS21260. Designed to fit 3/8" wire rope, with a precise thread size of 9/16-18. With diameters meticulously crafted for optimal performance, ensuring reliability under demanding conditions. Specify right-hand or left-hand thread for tailored solutions.

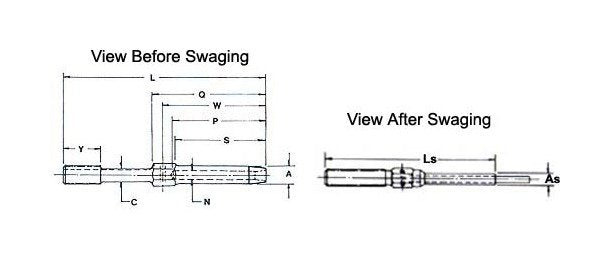

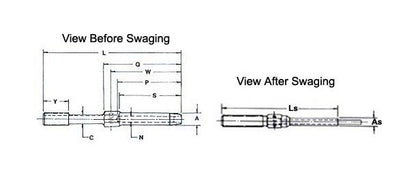

Product Specifications

Specifications As Diam

.625

Specifications A Diam

.703

Specifications C 006 000 Diain

.476

Specifications Lbs Per Piece

.50

Specifications Ls Ref

7.01

Specifications L 063 In

6.608

Specifications Nsn

N/A

Specifications N Diam

.390

Specifications P In

3.511

Specifications Q 031 016 In

4.281

Specifications R 062 000 Diameter In

.098

Specifications S 062 000 In

3.438

Specifications Thread Size B

9/16-18

Specifications To Fit Wire Rope Dia In

3/8

Specifications W In

3.828

Specifications Y 047 In

1.125

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Locking Studs MS21260 - Thread Specify RH/LH
