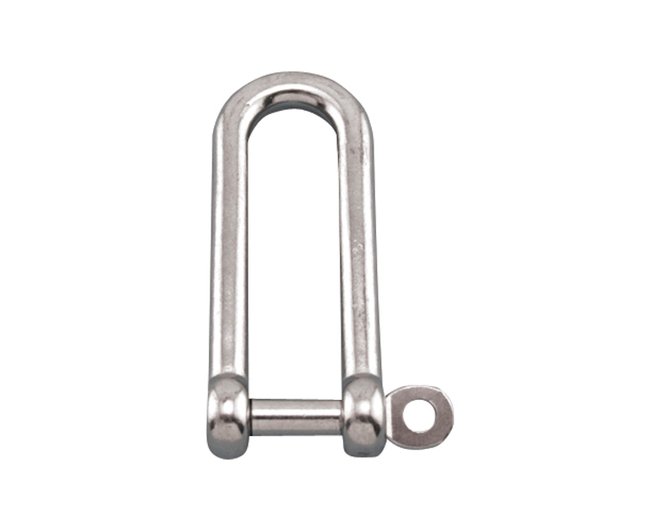

Stainless Steel Long D Shackle with Captive Pin - Marine Grade
Stainless Steel Long D Shackle with Captive Pin - Marine Grade
SKU:STA-c3a10c
Secure and corrosion-resistant stainless steel Long D Shackle with captive pin for marine applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Enhance safety and reliability with our Stainless Steel Long D Shackle featuring a captive pin with a self-locking mechanism. Crafted from grade 316 stainless steel for exceptional corrosion resistance, this shackle is perfect for marine applications where accidental dropping of pins is a concern. The pin is integrated into the shackle body, ensuring it won't back out or fall off. Available in various sizes, each precision cast shackle guarantees maximum durability and security.

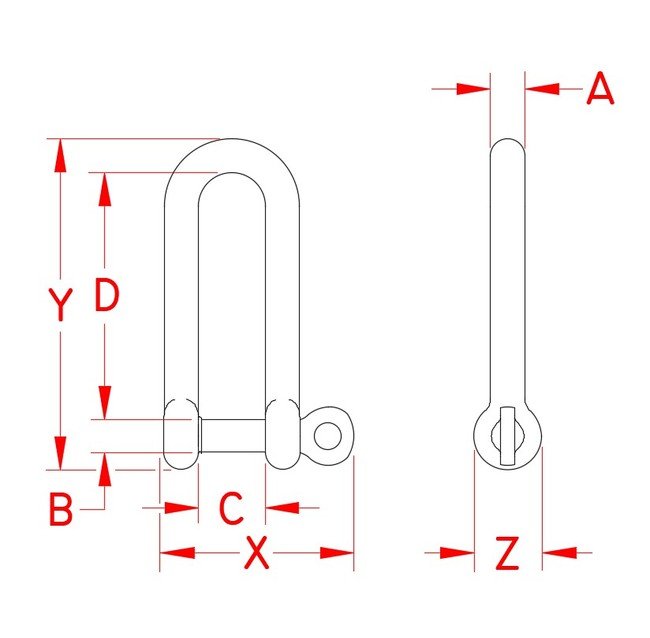

Product Specifications
Specifications Dimension A
5/32 in
Specifications Dimension B
0.15 in
Specifications Dimension C
0.30 in
Specifications Dimension D
1.17 in
Specifications Dimension X
0.92 in
Specifications Dimension Y
1.54 in
Specifications Dimension Z
0.31 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.03 lb
Specifications Working Load Limit Wll
200 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
