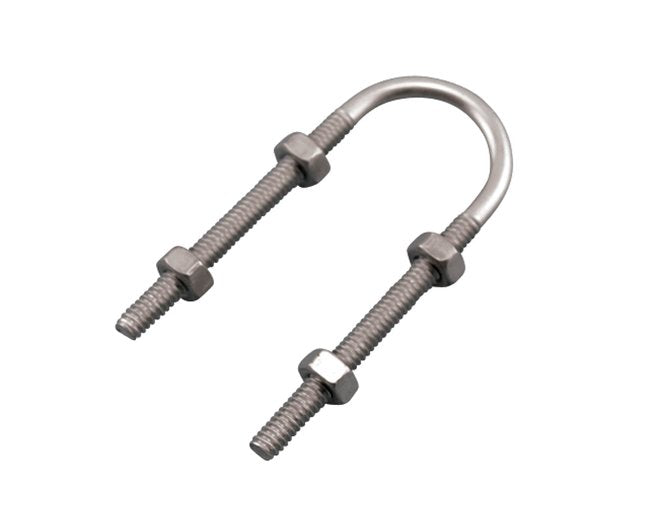

Stainless Steel Long U-Bolt 304 with Nuts, 1/4"–7/8"

Name: Stainless Steel Long U-Bolt 304 with Nuts, 1/4"–7/8"
Brand: Suncor Stainless, Inc.
SKU: STA-47eac6
Price: 15.99 USD
Availability: OutOfStock

SKU:STA-47eac6

Premium grade 304 Stainless Steel Long U-Bolt for marine & industrial use. Includes 4 nuts.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Long U-Bolt is a corrosion-resistant and durable wire-formed U-bolt designed for marine and industrial applications. Made from grade 304 stainless steel, it offers superior performance and longevity. Each U-bolt comes with four nuts for added convenience. With dimensions meeting industry standards, a working load limit of 3,230 lb, and precise fabrication, this U-bolt ensures reliable support and strength in various installations.

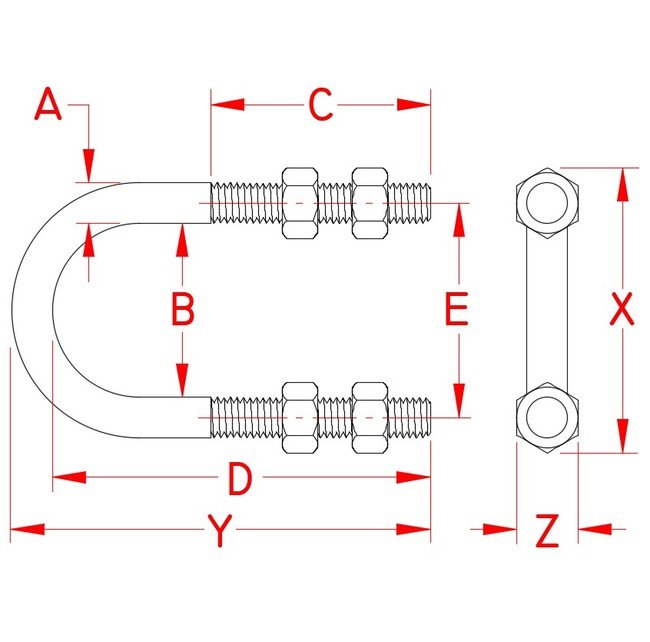

Product Specifications

Specifications Dimension A

5/8 in

Specifications Dimension B

6.75 in

Specifications Dimension C

3.75 in

Specifications Dimension D

9.69 in

Specifications Dimension E

7.38 in

Specifications Dimension X

8.38 in

Specifications Dimension Y

10.32 in

Specifications Dimension Z

0.94 in

Specifications Fabrication Type

Wire Formed

Specifications Made In

Import

Specifications Material

304 Stainless Steel

Specifications Weight

1.92 lb

Specifications Working Load Limit Wll

3,230 lb

CAGE

1CXX6

NAICS

332722

PSC

5306
