Stainless Steel Long U-Bolt - Suncor 304, 7/8 in x 16.13 in

Name: Stainless Steel Long U-Bolt - Suncor 304, 7/8 in x 16.13 in
Brand: Suncor Stainless, Inc.
SKU: STA-83e3a8
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-83e3a8

Premium Suncor 304 Stainless Steel Long U-Bolt for marine and industrial applications. Sizes from 1/4" to 7/8" with 6,730 lb WLL.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

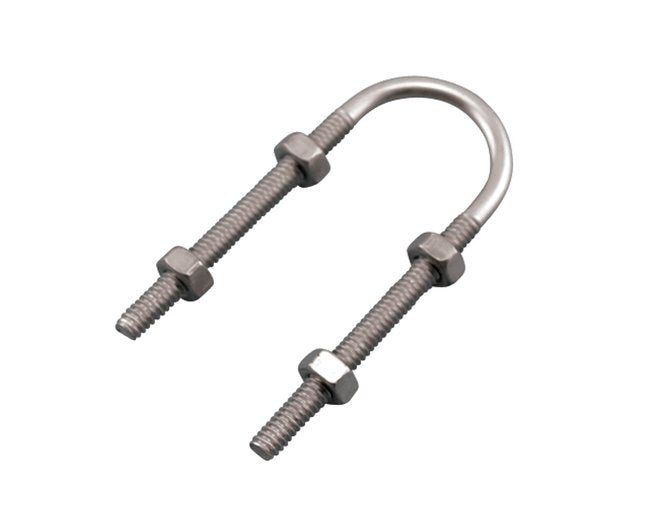

The Stainless Steel Long U-Bolt by Suncor in grade 304 stainless steel is designed for superior corrosion resistance and durability. Ideal for marine and industrial applications, this U-bolt, ranging from 1/4" to 7/8" sizes, comes with four nuts. With a Working Load Limit (WLL) of 6,730 lb and precise dimensions for a secure fit, this wire-formed U-bolt meets stringent quality standards, making it a reliable choice for heavy-duty usage.

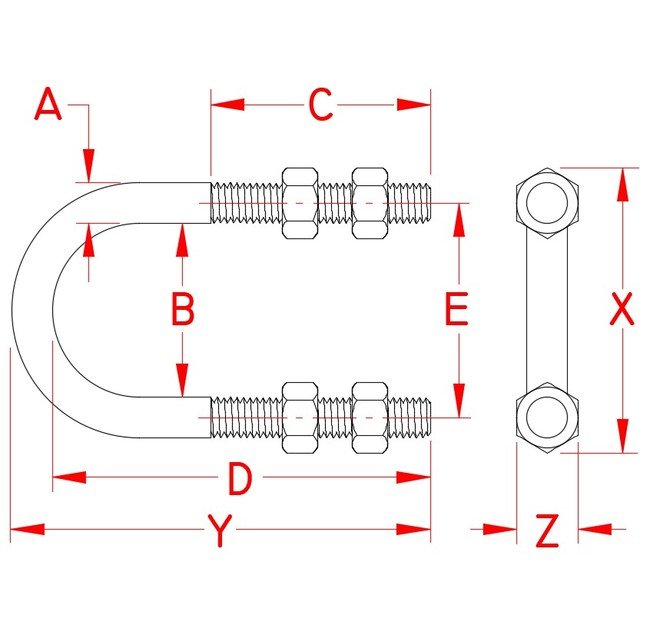

Product Specifications

Specifications Dimension A

7/8 in

Specifications Dimension B

16.13 in

Specifications Dimension C

4.25 in

Specifications Dimension D

19.25 in

Specifications Dimension E

17.00 in

Specifications Dimension X

18.25 in

Specifications Dimension Y

20.13 in

Specifications Dimension Z

1.29 in

Specifications Fabrication Type

Wire Formed

Specifications Made In

Import

Specifications Material

304 Stainless Steel

Specifications Weight

7.5 lb

Specifications Working Load Limit Wll

6,730 lb

CAGE

1CXX6

NAICS

332722

PSC

5306

Stainless Steel Long U-Bolt - Suncor 304, 7/8 in x 16.13 in
