Stainless Steel M-Series Rivet Nut, 14.0mm Open End Countersunk Head

Name: Stainless Steel M-Series Rivet Nut, 14.0mm Open End Countersunk Head
Brand: Ornit USA
SKU: MSE-784091
Price: 24.99 USD
Availability: OutOfStock

SKU:MSE-784091

High-quality M-Series Stainless Steel Rivet Nut for secure and easy fastening. Small Reduced Countersunk Head, ideal for various materials. Thread Size M6.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 14.0mm Stainless Steel Rivet Nut features a small Reduced Countersunk Head, perfect for secure fastening in a range of materials. With a Thread Size of M6 and a durable Stainless Steel A2 construction, it offers corrosion resistance and high tensile strength. The Open End design allows for easy installation, while the precise dimensions ensure a grip range of 0.5mm to 3.0mm. Ideal for industrial applications requiring reliable fastening solutions.

Product Specifications

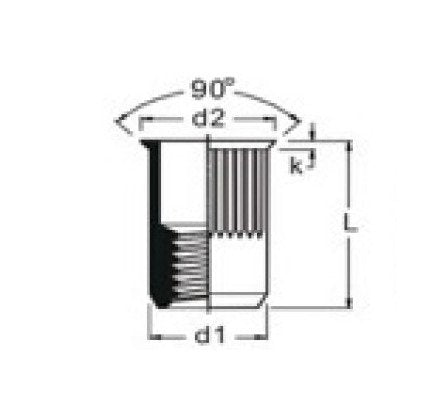

Dimensions Dimension D1

8.9 mm

Dimensions Dimension L

14.0 mm

Dimensions Hole Size

9.0 mm

Dimensions Maximum Dimension D2

10.0 mm

Dimensions Maximum Dimension K

0.8 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Stainless Steel A2

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Stainless Steel M-Series Rivet Nut, 14.0mm Open End Countersunk Head
