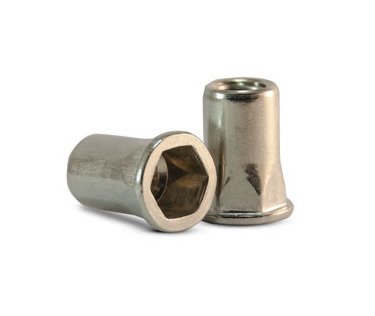

Stainless Steel M4 Semi-Hexagon Rivet Nut

Name: Stainless Steel M4 Semi-Hexagon Rivet Nut
Brand: Ornit USA
SKU: MSE-d6f11a
Price: 12.99 USD
Availability: OutOfStock

SKU:MSE-d6f11a

Premium Stainless Steel M4 Rivet Nut with flat cylindrical head design and superior grip range for secure fastening.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series M4 Semi-Hexagon Rivet Nut features a flat cylindrical head design suitable for a wide range of applications. Crafted from high-grade Stainless Steel A2 with a natural finish, this rivet nut offers superior durability and corrosion resistance. With a thread size of M4 and dimensions meeting industry standards, it ensures secure fastening with a grip range from 0.5mm to 3.0mm. Ideal for steel and aluminum materials, this rivet nut is a reliable choice for both consumer and institutional buyers.

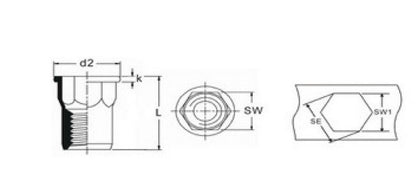

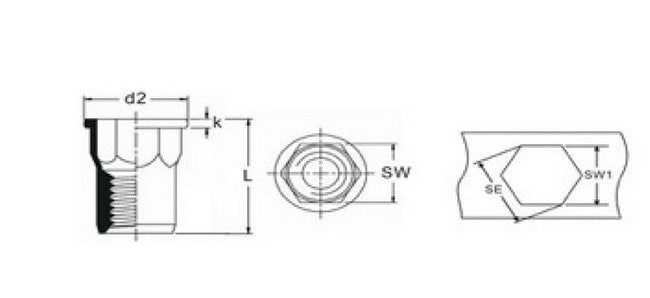

Product Specifications

Dimensions Dimension D1

6.8 mm

Dimensions Dimension L

13.0 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Dimension D2

9.3 mm

Dimensions Maximum Dimension K

1.0 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Stainless Steel A2

Technical Specs Rivet Type

Semi-Hexagone

Technical Specs Thread Size

M4 | SW 6.0

Stainless Steel M4 Semi-Hexagon Rivet Nut
