Stainless Steel M4 Thread Rivet Nut, 12.5mm L, Countersunk Head
Stainless Steel M4 Thread Rivet Nut, 12.5mm L, Countersunk Head
SKU:MSE-b01b11
Premium Stainless Steel Rivet Nut with M4 Thread, 12.5mm L, Large Countersunk Head
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Stainless Steel M4 Thread Rivet Nut, 12.5mm L, Countersunk Head
$14.99
Quantity: 1
Claim Your Seller Account
Stainless Steel M4 Thread Rivet Nut, 12.5mm L, Countersunk Head
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The M-Series 12.5mm Dimension L and M4 Thread Size Rivet Nut is crafted with premium stainless steel, featuring a large countersunk head for secure fastening. With a Wide grip range and compatibility with 6.0mm holes, this rivet nut offers exceptional durability and ease of installation. Ideal for industrial applications requiring robust fastening solutions, it meets stringent procurement standards ensuring reliability and performance.

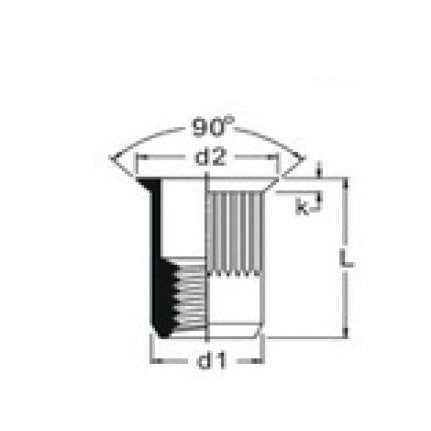

Product Specifications
Dimensions Dimension D1
5.9 mm
Dimensions Dimension L
12.5 mm
Dimensions Hole Size
6.0 mm
Dimensions Maximum Dimension D2
8.4 mm
Dimensions Maximum Dimension K
1.5 mm
Dimensions Maximum Grip Range
4.0 mm
Dimensions Minimum Grip Range
1.5 mm
Note Note
Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Natural
Technical Specs Head Style
Countersunk Head (Large)
Technical Specs Material
Stainless Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M4
