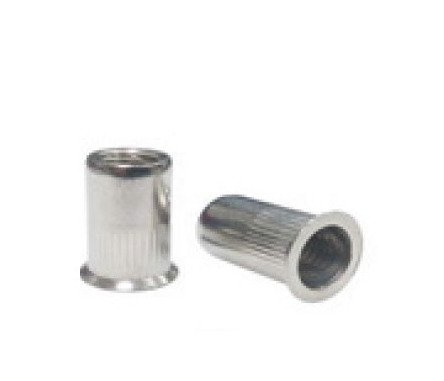

Stainless Steel M6 Thread Large Countersunk Head Rivet Nut, 18.0mm L

Name: Stainless Steel M6 Thread Large Countersunk Head Rivet Nut, 18.0mm L
Brand: Ornit USA
SKU: MSE-122e9c
Price: 14.99 USD
Availability: OutOfStock

SKU:MSE-122e9c

High-quality stainless steel M6 rivet nut with large countersunk head for secure fastening.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The M-Series 18.0mm Dimension L and M6 Thread Size Open End Countersunk Head Stainless Steel Rivet Nut offers durability and precision. With a large countersunk head and a grip range of 4.0mm to 6.5mm, this rivet nut is ideal for various applications. Compliant with federal procurement standards, this rivet nut ensures quality and reliability.

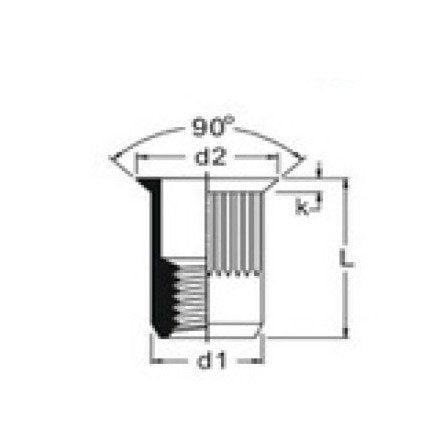

Product Specifications

Dimensions Dimension D1

8.9 mm

Dimensions Dimension L

18.0 mm

Dimensions Hole Size

9.0 mm

Dimensions Maximum Dimension D2

11.4 mm

Dimensions Maximum Dimension K

1.5 mm

Dimensions Maximum Grip Range

6.5 mm

Dimensions Minimum Grip Range

4.0 mm

Note Note

Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Natural

Technical Specs Head Style

Countersunk Head (Large)

Technical Specs Material

Stainless Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

Stainless Steel M6 Thread Large Countersunk Head Rivet Nut, 18.0mm L
