Stainless Steel Machined Clevis Socket Fitting - 1-1/2"

Name: Stainless Steel Machined Clevis Socket Fitting - 1-1/2"
Brand: Lexco Cable Manufacturing
SKU: ARC-4497f9
Price: 49.99 USD
Availability: OutOfStock

SKU:ARC-4497f9

High-strength stainless steel clevis fitting for secure wire rope installations.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Machined Clevis Socket Fitting is a robust solution designed for wire rope applications, offering exceptional strength and durability. With dimensions crafted for precision and a breaking strength of 228,000#, this fitting meets rigorous standards for linear applications. Manufactured from high-grade stainless steel, it ensures lasting performance and reliability. Compliant with industry specifications, this fitting is the ideal choice for architectural cable railings and other applications where quality and resilience are paramount.

Product Specifications

Additional Information About Breaking Strength 0

Rope fittings are designed for linear applications only. Never subject Electroline rope fittings to angular loads. Follow rope manufacturersâ recommendations regarding the suitability of the rope on angled surfaces such as sheaves and pulleys.The strength of an assembly greatly depends on the type of rope used. When using Electroline terminations in an assembly, the rope is often the weakest component. Therefore, it is important to follow the rope manufacturers specifications regarding use, care, and suitability of the assembly. Electroline terminations should be inspected for deformation and unusual wear every time the rope is inspected.The rated assembly breaking strengths provided with Electroline wire rope part numbers in this catalog are typical for 6 x 19 IWRC (1 x 19 IWRC in smaller sizes) carbon steel ropes. Due to customer demand regarding dimensions, forged studs (GD 300 series), open body turnbuckles (XD series), fittings with hooks, and machined eyes (ID 200 series) are rated to Improved Plow Steel (IPS) standards. These fittings can be modified to Extra Improved Plow Steel (EIPS) standards if requested. All other carbon steel fittings conform to EIPS standards.Stainless steel typically yields at 85% of the assembly breaking strengths listed in this catalog and may not be suitable for high load applications or re-termination purposes.Machined fittings are at least 1.3 times stronger than the corresponding steel rope. Forged fittings, except studs, are 2.0 times stronger. Items specified as hot-dipped galvanized include a zinc, electro-plated sleeve.

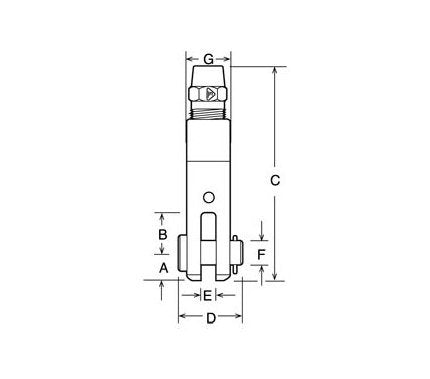

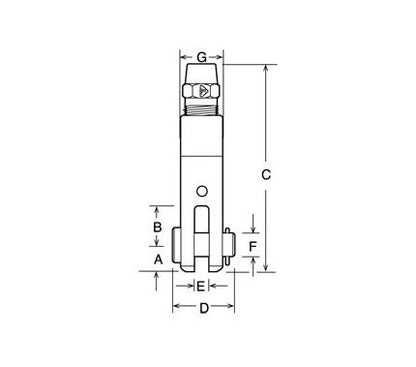

Specifications Dimensions F

2 "

Specifications Dimensions G

4-1/2 "

Specifications Dim A

2-3/4 "

Specifications Dim B

3-1/2 "

Specifications Dim C

21-3/8 "

Specifications Dim D

5 "

Specifications Dim E

1-3/4 "

Specifications Eips Breaking Strength

228,000#

Specifications Material Finish

Stainless Steel

Specifications Rope Size

1-1/2 "

Specifications Series

Machined

CAGE

0T9L4

NAICS

332510

PSC

4030
