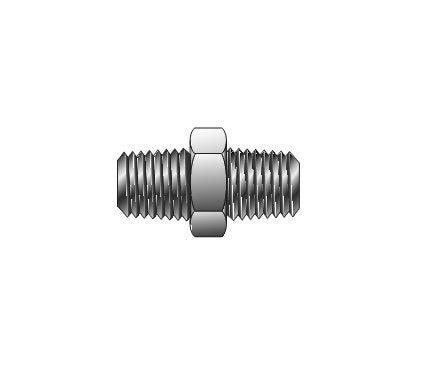

Stainless Steel Male Hex Nipple NPT to BSP Taper Fitting
Stainless Steel Male Hex Nipple NPT to BSP Taper Fitting
SKU:FIT-66763f
Parker's premium Stainless Steel Male Hex Nipple for seamless NPT to BSP Taper connections in high-pressure systems.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Stainless Steel Male Hex Nipple NPT to BSP Taper Fitting
$23.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Hex Nipple NPT to BSP Taper Fitting
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Hex Nipple NPT to BSP Taper Fitting by Parker is an essential component designed to facilitate connections between NPT and ISO threads with precision and reliability. Engineered to the highest standards, this fitting ensures leak-free joints and seamless integration into systems requiring superior pressure resistance. Crafted from top-grade materials, this versatile fitting offers excellent durability and performance, making it ideal for a wide range of industrial applications.

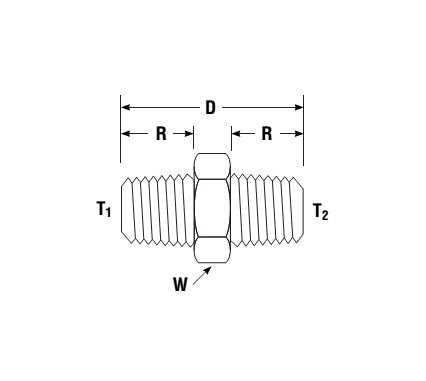

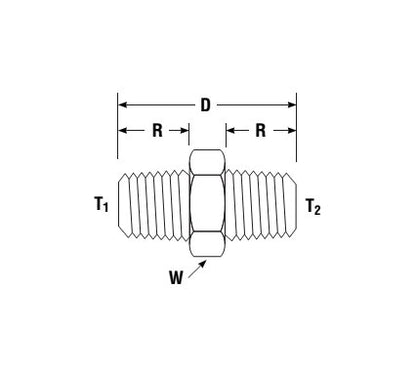

Product Specifications
Dimensions Bspt Thread T2
1/4-19
Dimensions Connection Type
MNPT to BSPT
Dimensions D
1.45 in
Dimensions Npt Thread T1
1/4-18
Dimensions R
.56 in
Dimensions Working Pressure Brass
4100 psi | 280 bar
Dimensions Working Pressure Stainless Steel
7500 psi | 520 bar
Dimensions W Hex
5/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
