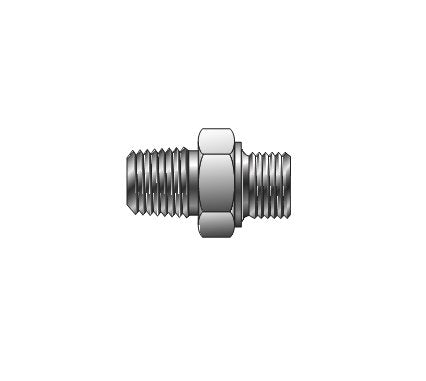

Stainless Steel Male Hex Nipple NPT to BSPP Fitting
Stainless Steel Male Hex Nipple NPT to BSPP Fitting
SKU:FIT-06ac09
Premium Stainless Steel Male Hex Nipple NPT to BSPP Fitting for secure, leak-free connections. High strength, corrosion-resistant, and suitable for high-pressure applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Hex Nipple NPT to BSPP Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Hex Nipple NPT to BSPP Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Hex Nipple NPT to BSPP Fitting by Parker is a premium-quality ISO conversion fitting that facilitates secure connections between components with NPT and ISO thread configurations. Crafted to meticulous standards, this fitting ensures leak-free joints and reliable performance. Constructed from durable stainless steel, it offers exceptional strength and corrosion resistance. With a working pressure of up to 7500 psi, this fitting is ideal for demanding industrial applications where precision and durability are crucial.
Product Specifications

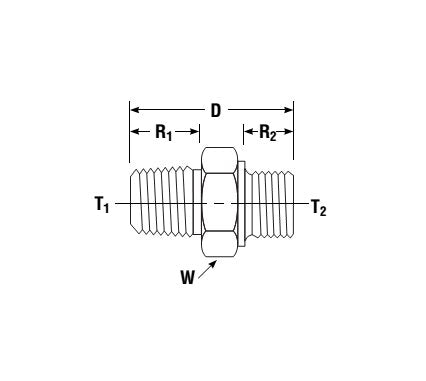

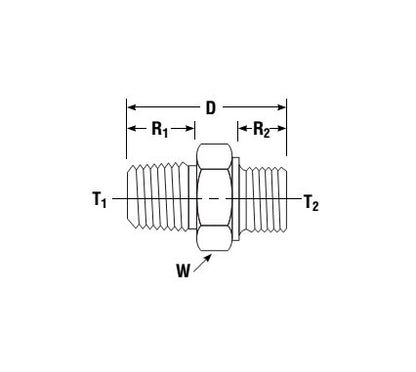

Dimensions Bspp Thread T2
1/4-19
Dimensions Connection Type
NPT x BSPP
Dimensions D
1.44 in
Dimensions Npt Thread T1
1/4-18
Dimensions R1
.56 in
Dimensions R2
.44 in
Dimensions Working Pressure Brass
4000 psi | 280 bar
Dimensions Working Pressure Stainless Steel
7500 psi | 520 bar
Dimensions W Hex
3/4 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
