Stainless Steel Male Stud Coupling BSP Parallel
Stainless Steel Male Stud Coupling BSP Parallel
SKU:FIT-a5cb78
High-quality stainless steel male stud coupling for light-duty applications with 160 bar pressure capacity. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling BSP Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling BSP Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling BSP Parallel offers a reliable solution with light-duty pressure capacity of up to 160 bar. Made of high-quality stainless steel, this coupling ensures durability and corrosion resistance. With a precise tube diameter of 28mm and conforming to DIN 2353 standards, this coupling guarantees secure and efficient connections for various applications.

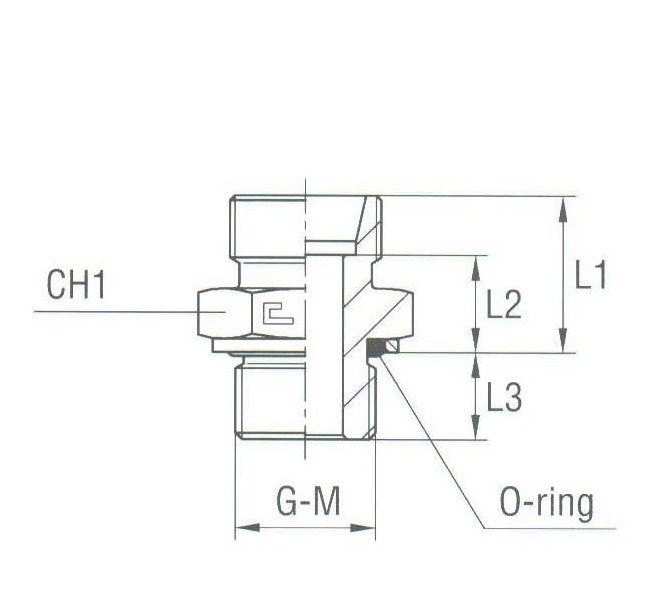

Product Specifications
Specifications Ch1
41 mm
Specifications G Thread Size
1
Specifications L1
25.1 mm
Specifications L2
17.6 mm
Specifications L3
15.4 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
28 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
