Stainless Steel Male Stud Coupling BSP Parallel
Stainless Steel Male Stud Coupling BSP Parallel
SKU:FIT-8ed7b1
High-pressure Stainless Steel Male Stud Coupling meeting DIN 2353 Standards
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling BSP Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling BSP Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling BSP Parallel offers heavy-duty performance with a nominal operating pressure of 250 bar. Crafted from high-quality stainless steel, this coupling ensures durability and reliability. With a tube diameter of 38.0mm and meeting DIN 2353 standards, it guarantees precision and quality in fluid systems.

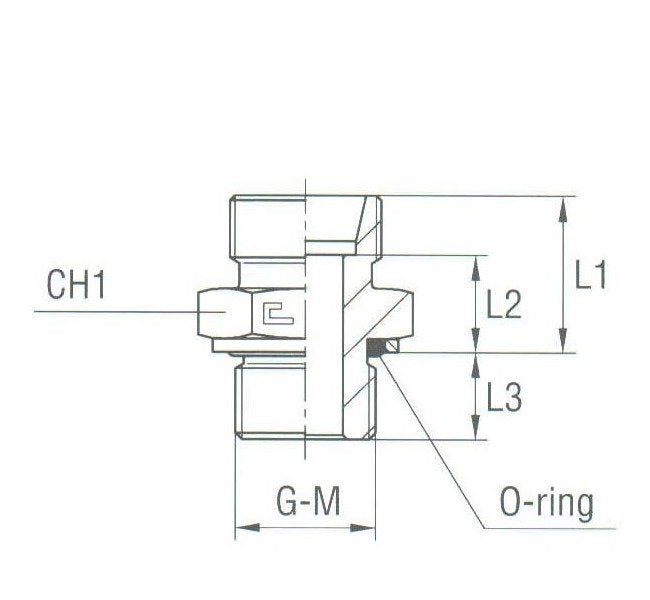

Product Specifications
Specifications Ch1
55 mm
Specifications G Thread Size
1 1/2
Specifications L1
42.1 mm
Specifications L2
26.1 mm
Specifications L3
19.4 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
38.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
