Stainless Steel Male Stud Coupling BSP Parallel - Heavy Duty - 400 Bar
Stainless Steel Male Stud Coupling BSP Parallel - Heavy Duty - 400 Bar
SKU:FIT-d29685
High-performance Stainless Steel Male Stud Coupling for heavy-duty applications. DIN 2353 compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling BSP Parallel - Heavy Duty - 400 Bar
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling BSP Parallel - Heavy Duty - 400 Bar
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling BSP Parallel is designed for heavy-duty applications with a nominal operating pressure of 400 bar. Crafted from high-quality stainless steel, this fitting ensures durability and reliability. Featuring a Tube Diameter of 8.0mm and G-Thread Size of 1/4, it meets DIN 2353 standards, making it a dependable choice for various industrial settings.

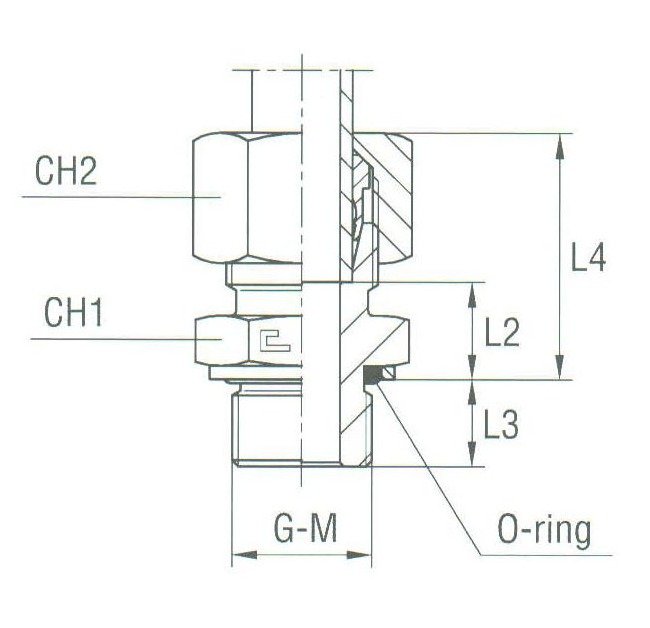

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications G Thread Size
1/4
Specifications L2
14.8 mm
Specifications L3
10.2 mm
Specifications L4
29.8 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
