Stainless Steel Male Stud Coupling BSP Parallel - Light Duty, 315 bar
Stainless Steel Male Stud Coupling BSP Parallel - Light Duty, 315 bar
SKU:FIT-e50553
High-quality Stainless Steel Male Stud Coupling for light-duty applications, DIN 2353 compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling BSP Parallel - Light Duty, 315 bar
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling BSP Parallel - Light Duty, 315 bar
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

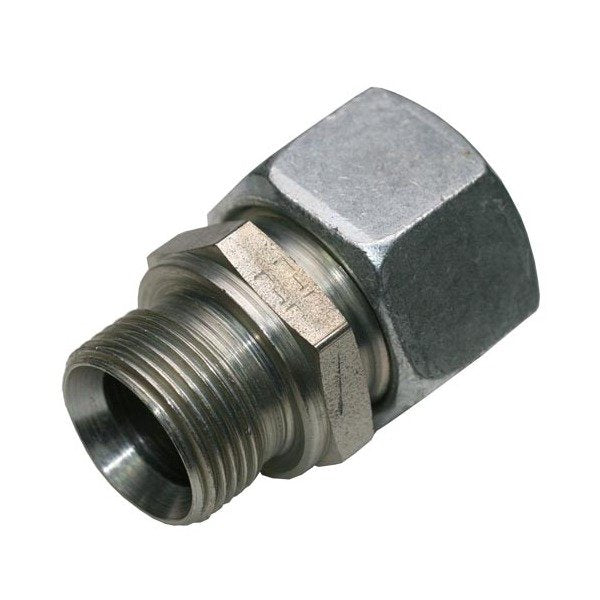

The Stainless Steel Male Stud Coupling BSP Parallel - Equipped B3 Ring is a high-quality fitting designed for light-duty applications with a nominal operating pressure of 315 bar. Made from durable stainless steel, this fitting ensures reliable performance and longevity. With a tube diameter of 8.0 mm and G-thread size of 1/2, it meets DIN 2353 standards, making it suitable for various industry applications.
Ready to Grow Without Cash Flow Constraints?

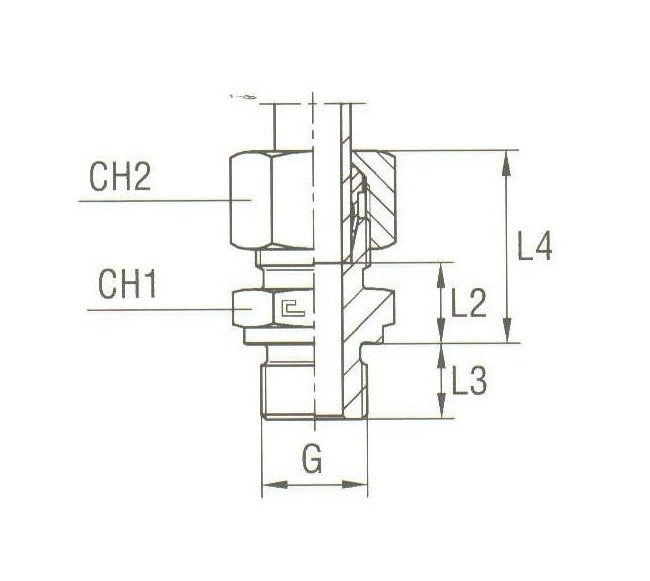

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
17.0 mm
Specifications G Thread Size
1/2
Specifications L2
12.0 mm
Specifications L3
14.0 mm
Specifications L4
27 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
