Stainless Steel Male Stud Coupling BSP Parallel - Pressure 315 Bar
Stainless Steel Male Stud Coupling BSP Parallel - Pressure 315 Bar
SKU:FIT-2e845d
Stainless Steel Male Stud Coupling for BSP Parallel Threads - Pressure Rating: 315 Bar. DIN 2353 Compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling BSP Parallel - Pressure 315 Bar
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling BSP Parallel - Pressure 315 Bar
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

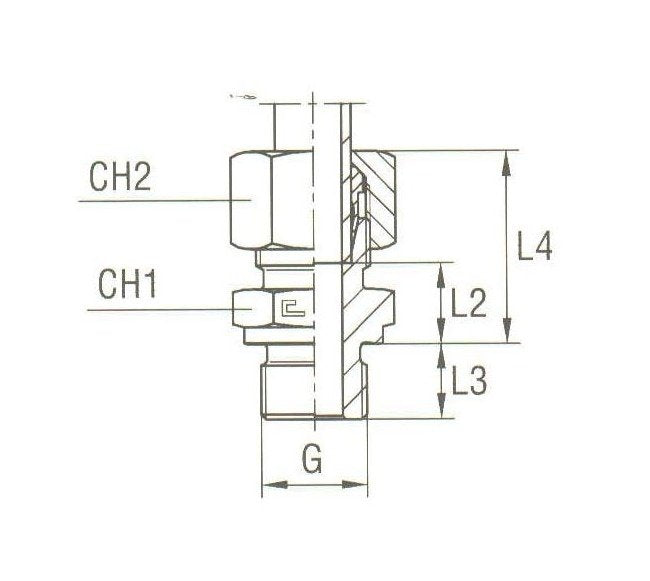

The Stainless Steel Male Stud Coupling Thread BSP Parallel - Equipped B3 Ring is designed for light-duty applications with a nominal operating pressure of 315 bar. Made of durable stainless steel, this fitting ensures reliable performance. With a tube diameter of 10.0mm and meeting DIN 2353 standards, it offers precision and quality for various industrial systems. The G-Thread Size is 1/8, and dimensions including L2: 10.5mm, L3: 8.0mm, L4: 25.5mm, CH1: 17.0mm, and CH2: 19.0mm provide a secure and leak-free connection.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
19.0 mm
Specifications G Thread Size
1/8
Specifications L2
10.5 mm
Specifications L3
8.0 mm
Specifications L4
25.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
