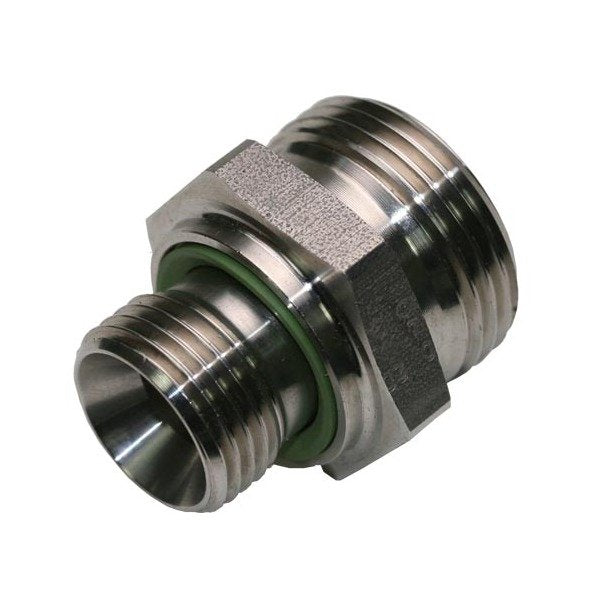

Stainless Steel Male Stud Coupling - BSP Parallel with Elastomer Seal
Stainless Steel Male Stud Coupling - BSP Parallel with Elastomer Seal
SKU:FIT-f5450a
High-performance Stainless Steel Male Stud Coupling for industrial use. Meets DIN 2353 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling - BSP Parallel with Elastomer Seal
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling - BSP Parallel with Elastomer Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with Elastomer Seal Thread BSP Parallel is a heavy-duty fitting designed for optimal performance in industrial applications. It features a tube diameter of 12.0 mm, a G-thread size of 1/4, and a nominal operating pressure of 630 bar, meeting DIN 2353 standards. With a compact design and precise dimensions (L1: 24.0 mm, L2: 16.5 mm, L3: 12.0 mm, CH1: 22 mm), this coupling ensures secure connections and leak-free operations.
Product Specifications
Specifications Ch1
22 mm
Specifications G Thread Size
1/4
Specifications L1
24.0 mm
Specifications L2
16.5 mm
Specifications L3
12.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
