Stainless Steel Male Stud Coupling BSP Parallel with Elastomer Seal - DIN 2353 Compliant
Stainless Steel Male Stud Coupling BSP Parallel with Elastomer Seal - DIN 2353 Compliant
SKU:FIT-95235b
Durable Stainless Steel Male Stud Coupling BSP Parallel, DIN 2353 Compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling BSP Parallel with Elastomer Seal - DIN 2353 Compliant
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling BSP Parallel with Elastomer Seal - DIN 2353 Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling with Elastomer Seal Thread BSP Parallel is a durable and reliable fitting ideal for light-duty applications. Constructed from high-quality stainless steel, it ensures optimal performance and longevity. With a tube diameter of 10.0mm and a nominal operating pressure of 315 bar, this coupling provides secure connections. Compliant with DIN 2353 standards, it meets the rigorous requirements of institutional and government procurement.

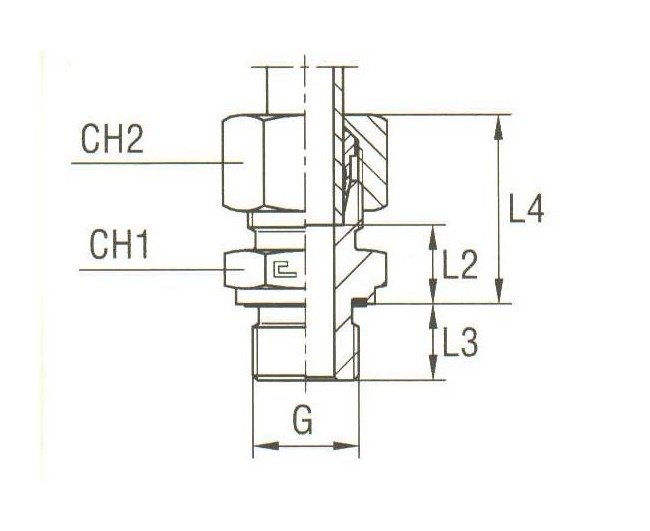

Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
19.0 mm
Specifications G Thread Size
3/8
Specifications L2
12.5 mm
Specifications L3
12.0 mm
Specifications L4
27.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
