Stainless Steel Male Stud Coupling for Heavy-Duty Applications - BSP Parallel Thread

Name: Stainless Steel Male Stud Coupling for Heavy-Duty Applications - BSP Parallel Thread
Brand: World Wide Metric, Inc.
SKU: FIT-175a27
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-175a27

High-quality Stainless Steel Male Stud Coupling for Heavy-Duty Applications - Meets DIN 2353 Standards

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

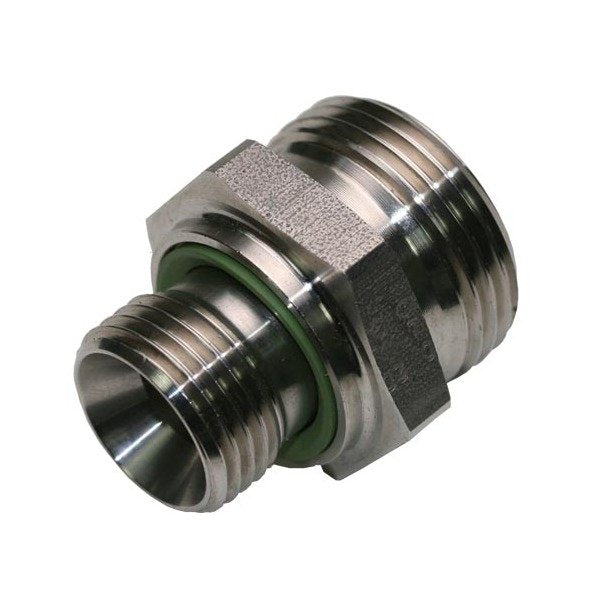

The Stainless Steel Male Stud Coupling with Elastomer Seal Thread BSP Parallel is designed for heavy-duty applications with a pressure rating of 400 bar. Crafted from high-quality stainless steel, this coupling ensures durability and reliability. It features a tube diameter of 20.0 mm and meets DIN 2353 standards, offering superior performance and precision. The L1 dimension is 33.0 mm, L2 is 22.5 mm, and L3 is 18.0 mm, making it ideal for a wide range of compression fitting applications.

Product Specifications

Specifications Ch1

41 mm

Specifications G Thread Size

Specifications L1

33.0 mm

Specifications L2

22.5 mm

Specifications L3

18.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

20.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread BSP Parallel
