Stainless Steel Male Stud Coupling - Metric Parallel
Stainless Steel Male Stud Coupling - Metric Parallel
SKU:FIT-035bf6
Durable Stainless Steel Male Stud Coupling for high-pressure applications. Compliant with DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling - Metric Parallel
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling - Metric Parallel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling features a light-duty design suitable for various applications. Crafted from durable stainless steel, it ensures reliability. With a tube diameter of 18.0 mm and a working pressure of 315 bar, this coupling is built to perform under pressure. Compliant with DIN 2353 standards, it meets stringent quality requirements for industrial use.

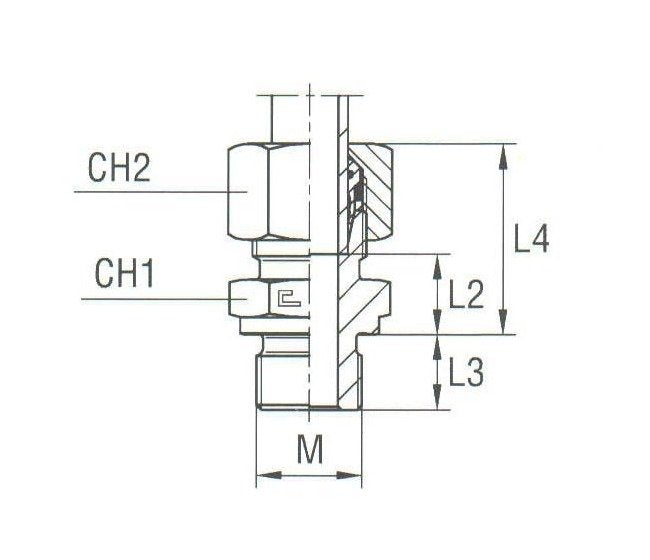

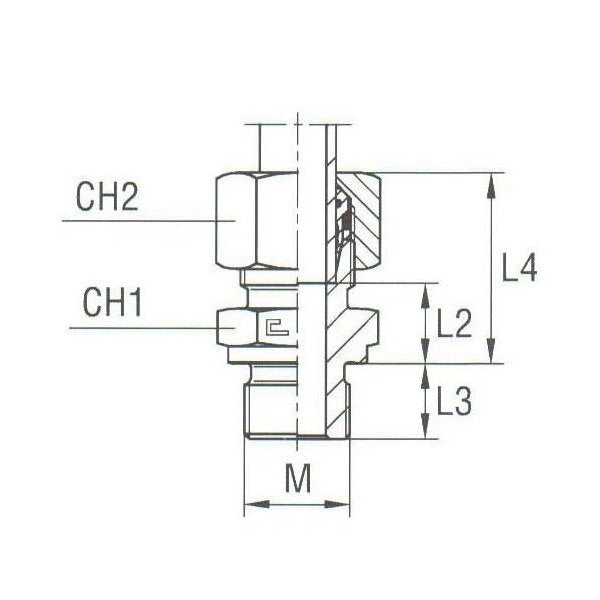

Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
32 mm
Specifications L2
14.5 mm
Specifications L3
14.0 mm
Specifications L4
31 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
Category 6
Male Stud Coupling Thread Metric Parallel
