Stainless Steel Male Stud Coupling, Metric Parallel - Body Only

Name: Stainless Steel Male Stud Coupling, Metric Parallel - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-0c0088
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-0c0088

Durable Stainless Steel Male Stud Coupling for light-duty applications, pressure rated at 315 bar, meets DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

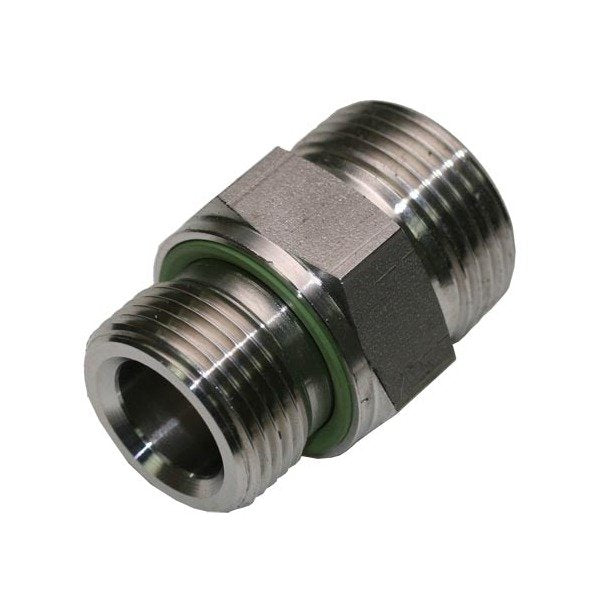

The Stainless Steel Male Stud Coupling with Elastomer Seal Thread Metric Parallel is designed for light-duty applications, offering a reliable connection with a pressure rating of 315 bar. Crafted from durable stainless steel, this fitting ensures long-lasting performance. With a tube diameter of 12.0 mm and M - Thread Size of 18x1.5, it meets DIN 2353 standards. Its compact design, measuring L1: 19.5 mm, L2: 12.5 mm, L3: 12.0 mm, and CH1: 24 mm, makes it suitable for various installations.

Product Specifications

Specifications Ch1

24 mm

Specifications L1

19.5 mm

Specifications L2

12.5 mm

Specifications L3

12.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

18x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel

Stainless Steel Male Stud Coupling, Metric Parallel - Body Only
