Stainless Steel Male Stud Coupling Metric Parallel - Light Duty
Stainless Steel Male Stud Coupling Metric Parallel - Light Duty
SKU:FIT-d80a6f
Durable Stainless Steel Male Stud Coupling for Light Duty Applications. M-Thread Size: 16x1.5. DIN 2353 Compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Male Stud Coupling Metric Parallel - Light Duty
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Male Stud Coupling Metric Parallel - Light Duty
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Male Stud Coupling Metric Parallel - Light Duty is designed for durability, featuring a tube diameter of 15.0 mm and a nominal operating pressure of 315 bar. With precise M-thread sizing of 16x1.5 and adherence to DIN 2353 standards, this coupling ensures reliable performance in various applications. The included B4 Ring enhances stability and sealing efficiency, making it ideal for both consumer and institutional use.

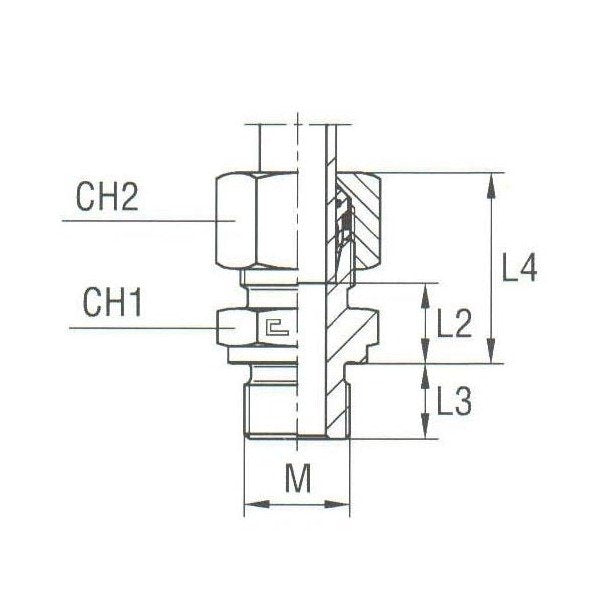

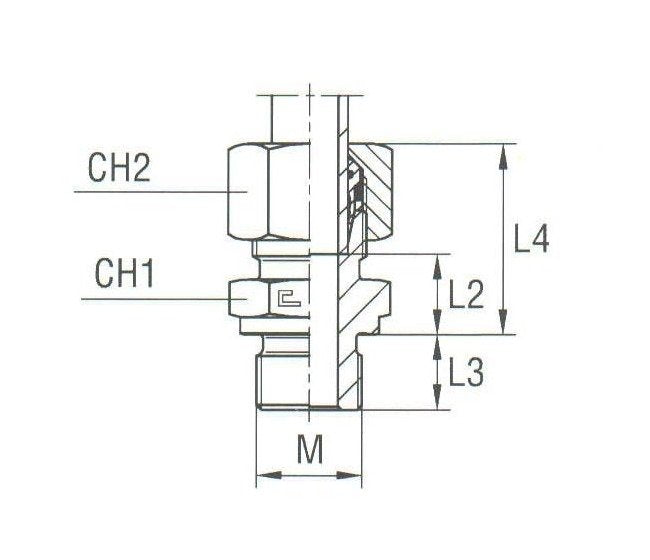

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
27 mm
Specifications L2
13.0 mm
Specifications L3
12.0 mm
Specifications L4
28 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
15.0 mm
Category 6
Male Stud Coupling Thread Metric Parallel
