Stainless Steel Male Stud Coupling - Metric Parallel Thread (Body Only)

Name: Stainless Steel Male Stud Coupling - Metric Parallel Thread (Body Only)
Brand: World Wide Metric, Inc.
SKU: FIT-3b5a73
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-3b5a73

Stainless Steel Male Stud Coupling - Metric Parallel Thread, DIN 2353 compliant, ideal for light-duty applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

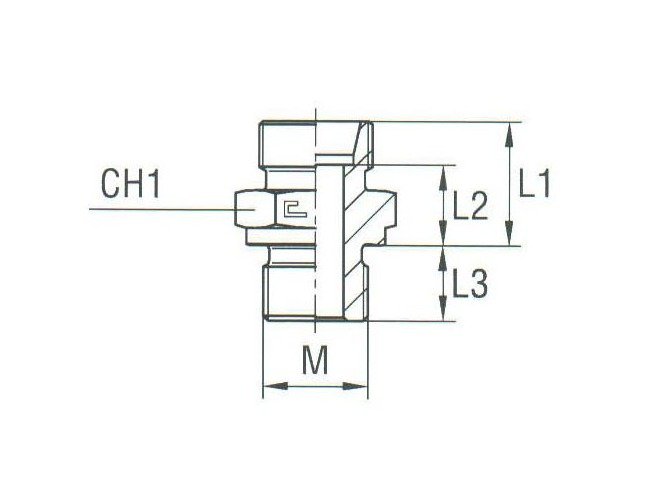

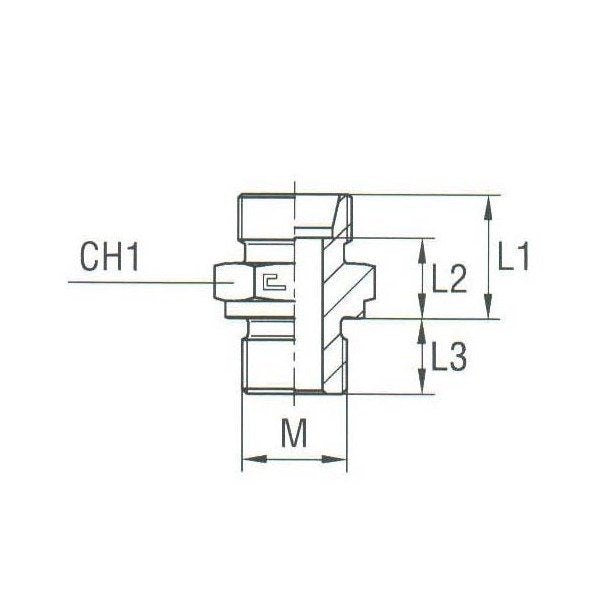

The Stainless Steel Male Stud Coupling with Metric Parallel Thread (Body Only) is designed for light-duty applications with a tube diameter of 10.0mm and an M-thread size of 22x1.5. With a nominal operating pressure of 315 bar, this coupling meets DIN 2353 standards. Its precise measurements include L1: 21.0mm, L2: 14.0mm, L3: 14.0mm, and CH1: 27mm, ensuring reliable performance and durability. Ideal for various industrial applications, this coupling provides a secure and leak-free connection, making it a dependable choice for hydraulic systems.

Product Specifications

Specifications Ch1

27 mm

Specifications L1

21.0 mm

Specifications L2

14.0 mm

Specifications L3

14.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel
